Same model may have multiple batches, images only for reference.

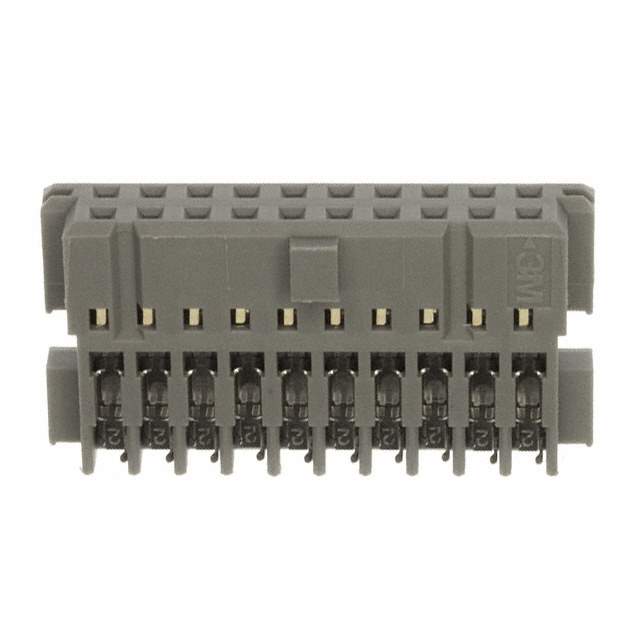

CHG-2020-J01010-KEP Real Image
Same model may have multiple batches, images only for reference.

CHG-2020-J01010-KEP

Part No CHG-2020-J01010-KEP
Manufacturer 3M
Catalog OEM Parts (C - E)
Description Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals UL
Cable Length 3 m
Color Grey
Connector Type IDC, Receptacle, Socket
Contact Gender Female
Contact Plating Gold
Current Rating 2 A
Flammability Rating UL94 V-0
Gender Receptacle
Housing Color Grey
Housing Material Glass
Lead Free Yes
Lead Length 3 m
Lead Pitch 2.54 mm
Length 3 m
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Cable, Free Hanging
Number of Contacts 20
Number of Positions 20
Number of Rows 2
Orientation Straight
Pitch 2.54 mm
REACH SVHC Unknown
RoHS Compliant
Row Spacing 2.54 mm
Sensing Distance 3 m
Termination IDC
Weight 453.59237 g
Wire/Cable Gauge 22 AWG
Wire/Cable Type Discrete
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 22 AWG
Win Source Part Number 1062752-CHG-2020-J01010-KEP
Categories OEM Parts(C-E)
Manufacturer 3M
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian CHG-2020-J01010-KEP CAD Model

Description

The 3M 1062752-CHG-2020-J01010-KEP is a 20-position IDC Receptacle Socket connector.

  • Rows: Two
  • Pitch: 2.54mm
  • Housing Material: Glass
  • Contact Plating: Gold
  • Approval: UL
  • Current Rating: 2A
  • Mounting: Cable, Free Hanging
  • Cable Length: 3 meters
  • Orientation: Straight
  • Contact Gender: Female
  • Sensing Distance: 3 meters
  • Application: OEM parts
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -55 °C
  • Supply and Demand Status: Shortage
