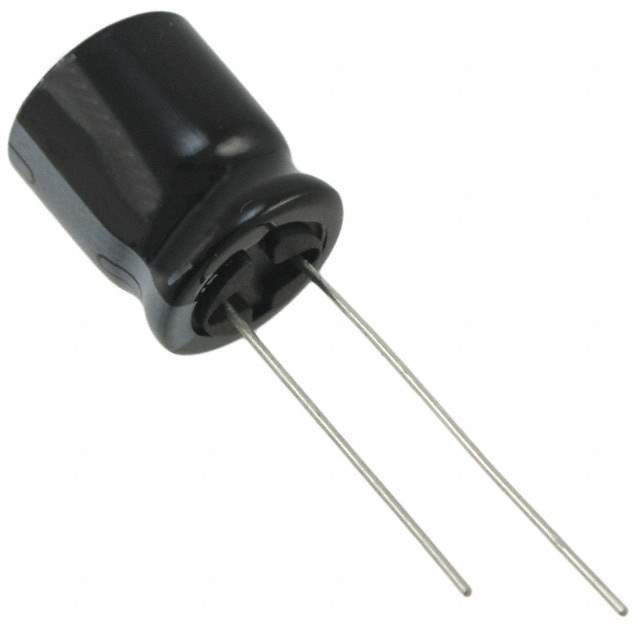

Same model may have multiple batches, images only for reference.

UHE1C222MHD

Name: UHE1C222MHD
Brand: Nichicon
SKU: 1329219
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UHE1C222MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 16V RADIAL / 2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Nichicon
Packaging	Bulk
Product Status	Not For New Designs
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.304 A @ 120 Hz
Ripple Current @ High Frequency	2.23 A @ 100 kHz
Impedance	27 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.984" (25.00mm)
Mounting	Through Hole
Case / Package	Radial, Can
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	493-1532
Standard Package	800
Win Source Part Number	1329219-UHE1C222MHD
Ultra Librarian 3D Model	Ultra Librarian UHE1C222MHD CAD Model

Description

The Nichicon 1142755 is an aluminum electrolytic capacitor that comes in a radial, can package.

Diameter: 0.492 inches (12.50mm)
Application: General Purpose
Capacitance: 2200 µF
Voltage Rating: 16 V
Tolerance: ±20%
Impedance: 27 mOhms
ESR: Not Specified
Lifetime: 10000 hours @ 105°C
Polarized: Yes
Operating Temperature: -40°C to 105°C
