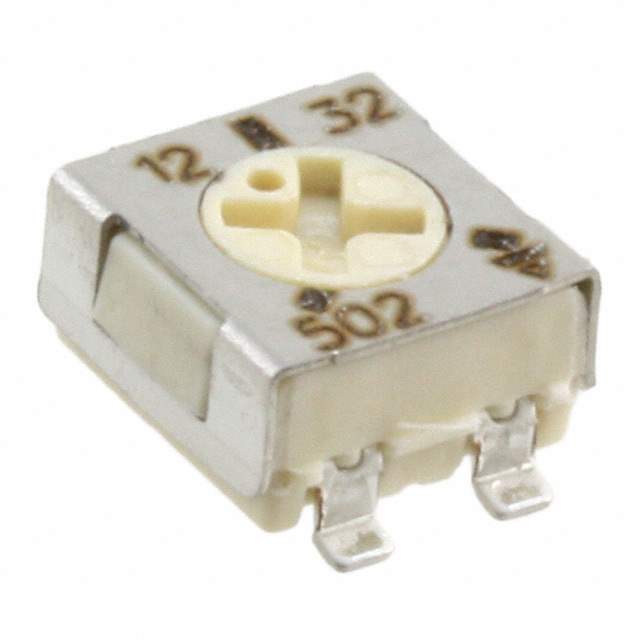

Same model may have multiple batches, images only for reference.

TS53YL502MR10

Name: TS53YL502MR10
Brand: Vishay
SKU: 984274
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TS53YL502MR10
Manufacturer	Vishay
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 5K OHM 0.25W GW TOP ADJ / 5 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet	TS53YL502MR10 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Vishay Sfernice
Series	TS53
Package	Tape & Reel
Resistance	5 kOhms
Power (Watts)	0.25W, 1/4W
Tolerance	±20%
Temperature Coefficient	±100ppm/°C
Number of Turns	1
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting	SMD (SMT)
Termination Style	Gull Wing
Dimension	Square - 0.197" x 0.197" Face (5.00mm x 5.00mm)
MSL Level	4 (72 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	TS53YL-5.0KTR,TS53YL-5.0KDKR,TS53YL-5.0KCT
Standard Package	500
Win Source Part Number	984274-TS53YL502MR10
Ultra Librarian 3D Model	Ultra Librarian TS53YL502MR10 CAD Model

Description

The TS53YL502MR10 is a cermet potentiometer with a resistance of 5 kOhms and a tolerance of ±20%.

Manufacturer: Vishay Sfernice
Type: Cermet
Resistance: 5 kOhms
Tolerance: ±20%
Adjustment: Top
Turns: Single
Power Rating: 0.25W, 1/4W
Termination: Gull Wing
Mounting: SMD (SMT)
Dimension: Square - 0.197" x 0.197" face (5.00mm x 5.00mm)
Temperature Coefficient: ±100ppm/°C
MSL Level: 4 (72 Hours)
Series: TS53
