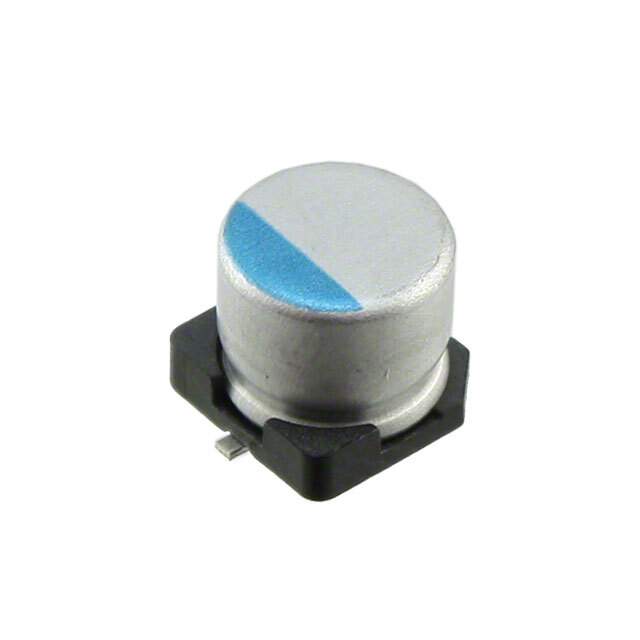

Same model may have multiple batches, images only for reference.

UCX1V101MCS6GS

Name: UCX1V101MCS6GS
Brand: Nichicon
SKU: 1349190
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UCX1V101MCS6GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 35V SMD / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 250mOhm 2000 Hrs @ 135°C
Datasheet	UCX1V101MCS6GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCX
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	250mOhm
Lifetime @ Temp.	2000 Hrs @ 135°C
Temperature Range - Operating	-40°C ~ 135°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	98.5 mA @ 120 Hz
Ripple Current @ High Frequency	197 mA @ 100 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	600
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1349190-UCX1V101MCS6GS
Ultra Librarian 3D Model	Ultra Librarian UCX1V101MCS6GS CAD Model

Description

The Nichicon UCX series aluminum electrolytic capacitor is designed for general-purpose applications.

Packaging: Tape and reel
Standard Package: 600
Capacitance: 100 µF
Tolerance: ±20%
Rated Voltage: 35 V
ESR: 250mOhm
Lifetime: 2000 hours @ 135°C
Polarization: Polarized
Surface Mount Land Size: 0.260” L x 0.260” W (6.60mm x 6.60mm)
Package/Case: Radial, can - SMD
Operating Temperature: -40°C ~ 135°C
REACH: Unaffected
HTSUS: 8532.22.0020
Product Status: Not for new designs
