Same model may have multiple batches, images only for reference.

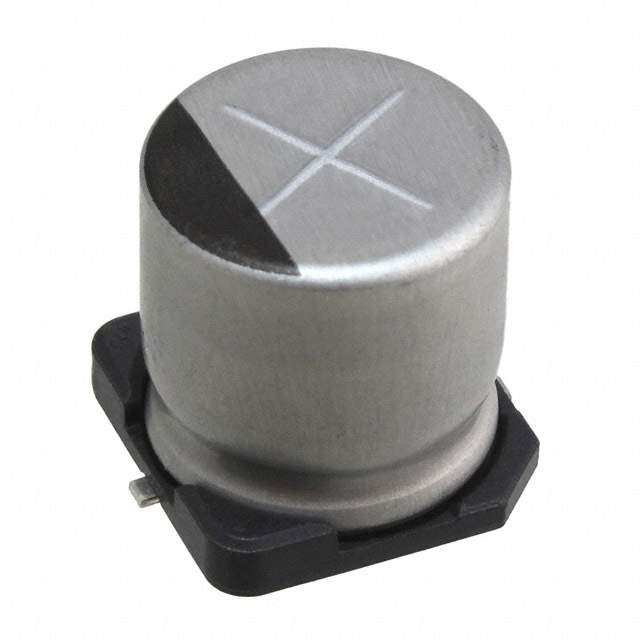

UCW1V331MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCW1V331MNL1GS

Part No UCW1V331MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCW
Package Tape & Reel
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 425 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 160 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 493-9432-6,493-9432-1,493-9432-2,UCW1V331MNL1GS
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307342-UCW1V331MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCW1V331MNL1GS CAD Model

Description

The UCW1V331MNL1GS is an aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 330 µF
  • Voltage Rating: 35 V
  • Impedance: 160 mOhms
  • ESR (Equivalent Series Resistance): not specified
  • Ripple Current (Low Frequency): 425 mA @ 120 Hz
  • Ripple Current (High Frequency): 850 mA @ 100 kHz
  • Lifetime: 7000 hours @ 105°C
  • Mounting Type: Surface-mount device (SMD)
  • Package: Radial, can-SMD
  • Package Dimensions: 0.394" diameter and 0.394" height
  • Application: General-purpose
  • Packaging: Tape and reel
  • RoHS Compliant: Yes
  • REACH: Unaffected
