Same model may have multiple batches, images only for reference.

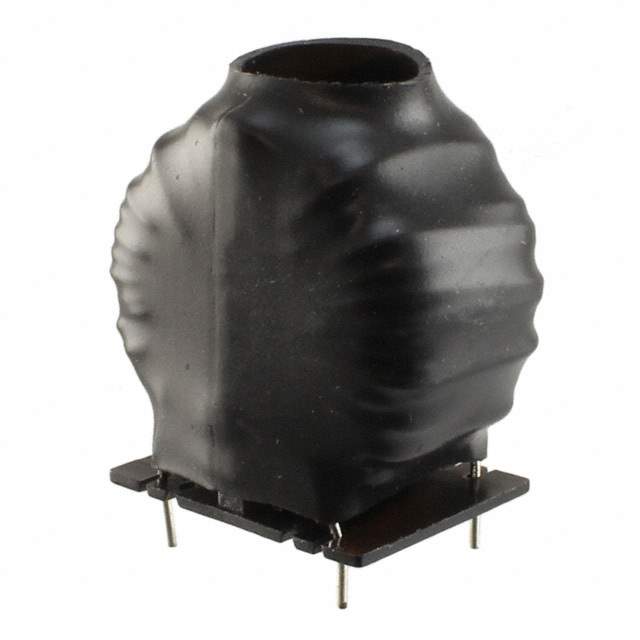

SC-04-200JV Real Image
Same model may have multiple batches, images only for reference.

SC-04-200JV

Part No SC-04-200JV
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 29 mH @ 16 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Mounting Type Through Hole
Dimension 1.378" Dia x 0.984" W (35.00mm x 25.00mm)
Height (Max) 1.575" (40.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-04
Other Names 399-10667,UALSC04200JV00
Standard Package 160
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277055-SC-04-200JV
Ultra Librarian 3D Model Ultra Librarian SC-04-200JV CAD Model

Description

This KEMET SC-04-200JV common mode choke is perfect for your filtering needs.

  • Voltage Rating: 250V AC/DC
  • Current Rating: 5A
  • Standard Package: 160
  • Filter Type: Power Line
  • Height: 1.575 inches
  • Number of Lines: 2
  • Inductance at Frequency: 29 mH @ 16 kHz
  • DC Resistance (DCR): 100mOhm
  • Mounting Type: Through hole mounted
  • Package/Case: Vertical, 4 PC pin
  • HTSUS: 8504.31.4065
  • Base Product Number: SC-04
