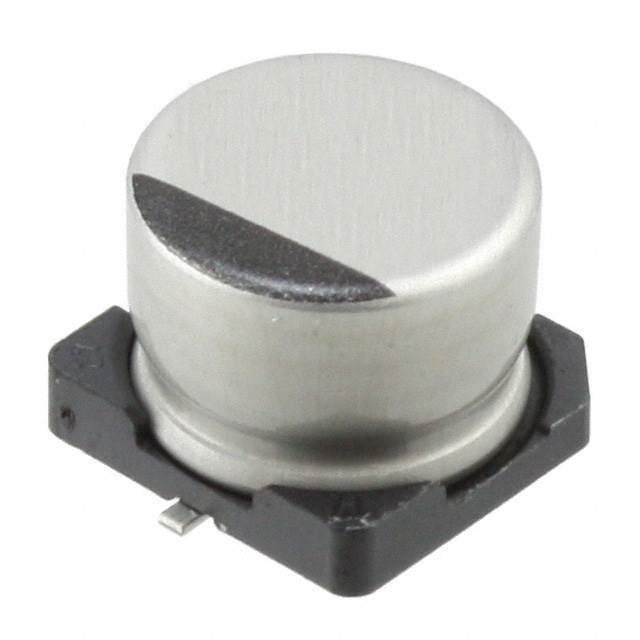

Same model may have multiple batches, images only for reference.

UCL1V151MNL1GS

Name: UCL1V151MNL1GS
Brand: Nichicon
SKU: 1338268
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UCL1V151MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 35V SMD / 150 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCL1V151MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCL
Package	Tape & Reel
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	425 mA @ 120 Hz
Ripple Current @ High Frequency	850 mA @ 100 kHz
Impedance	80 mOhms
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1338268-UCL1V151MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCL1V151MNL1GS CAD Model

Description

The UCL1V151MNL1GS is a general-purpose aluminum electrolytic capacitor that is designed for use in various electronic applications.

Application: General Purpose
Capacitance: 150 µF
Voltage Rating: 35 V
Series: UCL
Package: Radial, Can - SMD
Diameter: 0.315" Dia (8.00mm)
Height: 0.394" (10.00mm)
Polarization: Polar
Temperature Range: -55°C to 105°C
ESR: Not Specified
Lifetime @ Temperature: 2000 hours @ 105°C
Ripple Current (Low Frequency): 425 mA @ 120 Hz
Ripple Current (High Frequency): 850 mA @ 100 kHz
