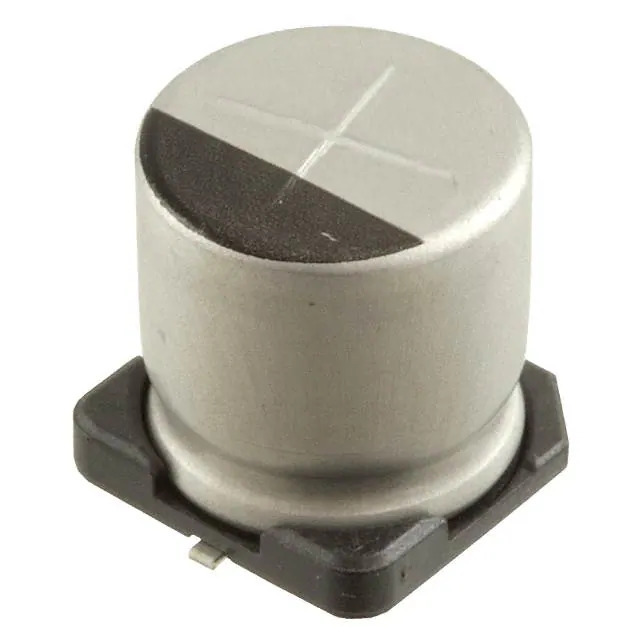

Same model may have multiple batches, images only for reference.

UCD1H151MNL1GS

Name: UCD1H151MNL1GS
Brand: Nichicon
SKU: 1360325
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1H151MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 50V SMD / 150 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet	UCD1H151MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Product Status	Active
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	350 mA @ 120 Hz
Ripple Current @ High Frequency	700 mA @ 100 kHz
Impedance	160 mOhms
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360325-UCD1H151MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UCD1H151MNL1GS CAD Model

Description

The 1360325-UCD1H151MNL1GS is an aluminum electrolytic capacitor manufactured by Nichicon.

Series: UCD
Application: Automotive
Capacitance: 150 μF
Voltage: 50 V
Tolerance: ±20%
ESR: Not Specified
Operating Temperature: -55°C to 105°C
Lifetime: 5000 hours @ 105°C
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Size: 0.394" diameter (10.00mm)
Seated Height (Max): 0.413" (10.50mm)
AEC-Q200: Rated
REACH: Complies
