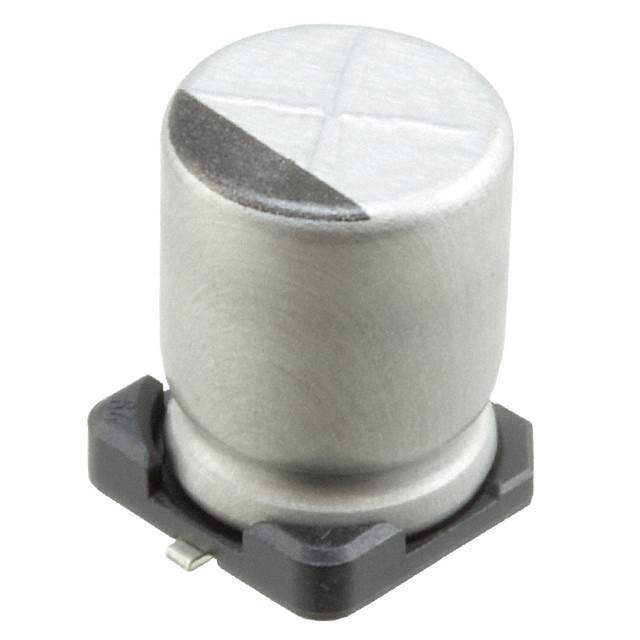

UCD1H101MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCD1H101MNL1GS

Part No UCD1H101MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nichicon
Packaging Reel
Capacitance 100μF
Tolerance ±20%
Voltage - Rated 50V
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications Automotive
Ripple Current at Low Frequency 175mA at 120Hz
Ripple Current at High Frequency 350mA at 100kHz
Impedance 320 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813740-UCD1H101MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1H101MNL1GS CAD Model

Description

The UCD1H101MNL1GS capacitor from Nichicon is a high-quality automotive capacitor that is perfect for use in a wide range of electronic applications.

  • Capacitance: 100μF
  • Tolerance: ±20%
  • Voltage Rating: 50V
  • Impedance: 320 mOhms
  • Package: Radial, can - SMD
  • Mounting: Surface Mount
  • Manufacturer Pack Quantity: 500 units
  • Category: Capacitors
  • ECCN: EAR99
  • Ripple Current @ Low Frequency: 175mA @ 120Hz
  • Ripple Current @ High Frequency: 350mA @ 100kHz
  • Lifetime @ Temperature: 5000 Hrs @ 105°C
