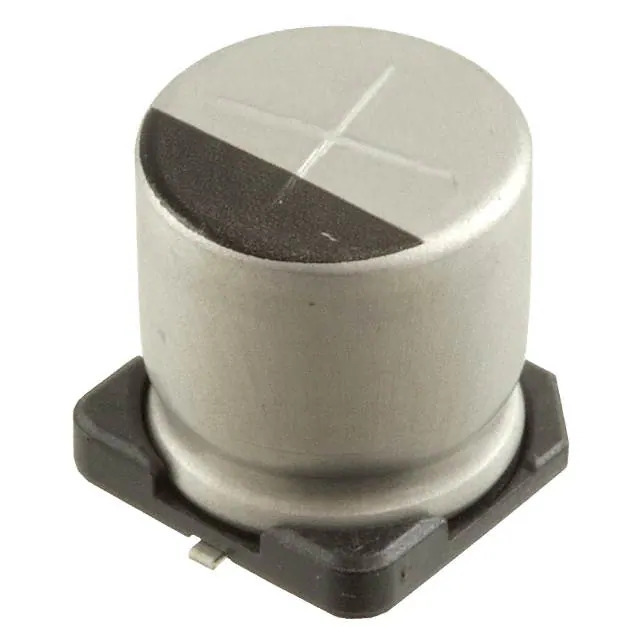

UCD1A102MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

UCD1A102MNL1GS

Part No UCD1A102MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 10V SMD / 1000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UCD1A102MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 425 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 80 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360253-UCD1A102MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1A102MNL1GS CAD Model

Description

The UCD series aluminum electrolytic capacitor from Nichicon is a high-performance component designed for automotive applications.

  • Capacitance: 1000 μF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Ripple Current (120 Hz): 425 mA
  • Ripple Current (100 kHz): 850 mA
  • Size: 0.394 inches (10.00mm) Diameter x 0.413 inches (10.50mm) Height
  • Mounting Type: Surface Mount
  • Lifetime: 5000 hours @ 105°C
  • Rating: AEC-Q200 (Automotive)
  • Polarization: Polarized
  • REACH: Unaffected
  • ECCN: EAR99
