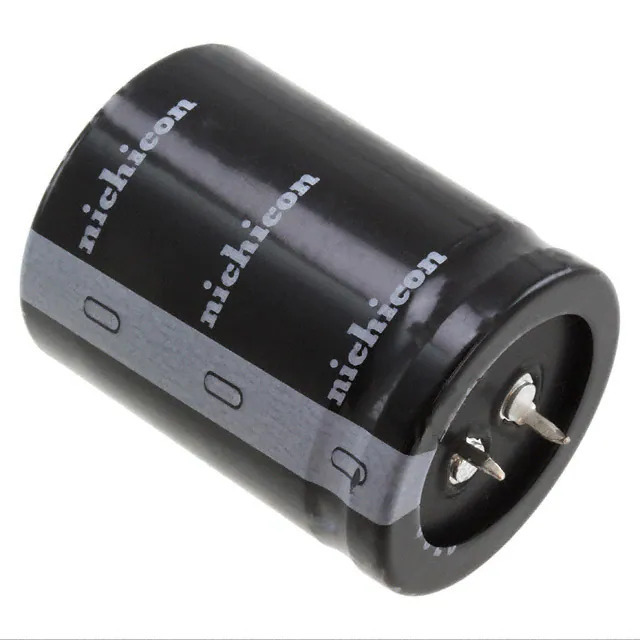

LLS2D222MELC Nichicon
Same model may have multiple batches, images only for reference.

LLS2D222MELC

Part No LLS2D222MELC
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 200V SNAP / 2200 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet
LLS2D222MELC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LLS
Package Bulk
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 5.25 A @ 120 Hz
Ripple Current @ High Frequency 7.875 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.772" (45.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360807-LLS2D222MELC
Ultra Librarian 3D Model Ultra Librarian LLS2D222MELC CAD Model

Description

The LLS2D222MELC is an aluminum electrolytic capacitor from Nichicon.

  • Series: LLS
  • Capacitance: 2200 µF
  • Voltage Rating: 200 V
  • Application: General-purpose
  • Temperature Range: -40°C to 85°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 5.25 A @ 120 Hz
  • Ripple Current (High Frequency): 7.875 A @ 50 kHz
  • Package: Radial, can - snap-in
  • Mounting Type: Through-hole
  • Lifetime: 3000 hours @ 85°C
  • REACH: Unaffected
