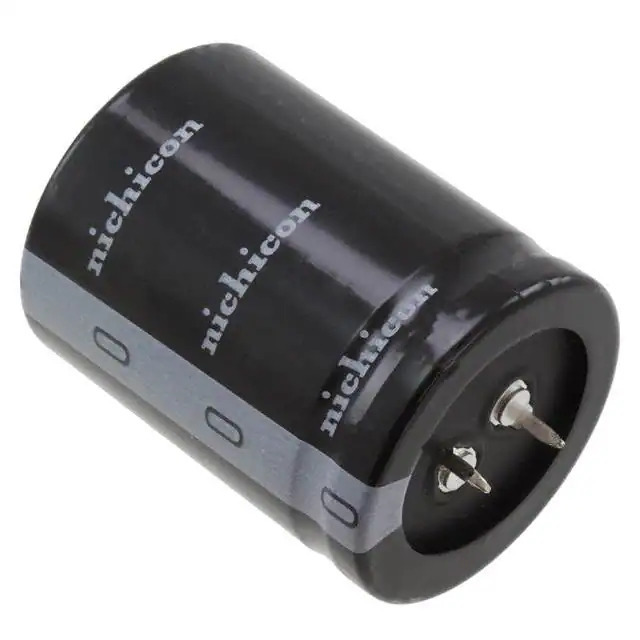

Same model may have multiple batches, images only for reference.

LLS1V223MELC

Name: LLS1V223MELC
Brand: Nichicon
SKU: 1360747
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LLS1V223MELC
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22000UF 20% 35V SNAP / 22000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet	LLS1V223MELC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLS
Package	Bulk
Product Status	Active
Capacitance	22000 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	6.38 A @ 120 Hz
Ripple Current @ High Frequency	7.337 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360747-LLS1V223MELC
Ultra Librarian 3D Model	Ultra Librarian LLS1V223MELC CAD Model

Description

The LLS1V223MELC is a high-quality aluminum electrolytic capacitor manufactured by Nichicon. Bold text is LLS1V223MELC.

Series: LLS
Capacitance: 22000 μF
Voltage Rating: 35 V
Temperature Range: -40°C to 85°C
Package: Radial, can - snap-in
Lead Spacing: 10.00mm
Lifetime: 3000 hours @ 85°C
Ripple Current (Low Frequency): 6.38 A @ 120 Hz
Ripple Current (High Frequency): 7.337 A @ 50 kHz
Mounting: Through-hole
REACH: Unaffected
