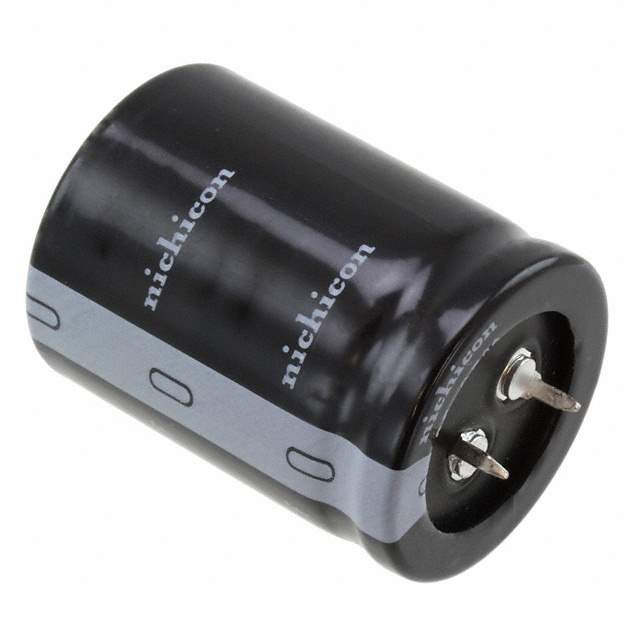

Same model may have multiple batches, images only for reference.

LLG2W471MELB40

Name: LLG2W471MELB40
Brand: Nichicon
SKU: 1349603
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LLG2W471MELB40
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 450V SNAP / 470 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
Datasheet	LLG2W471MELB40 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLG
Package	Bulk
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	450 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-25°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.32 A @ 120 Hz
Ripple Current @ High Frequency	3.3176 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1349603-LLG2W471MELB40
Ultra Librarian 3D Model	Ultra Librarian LLG2W471MELB40 CAD Model

Description

The LLG2W471MELB40 is an aluminum electrolytic capacitor from the LLG series, manufactured by Nichicon. Bold the product name (e.g., BAV99S,135 → LLG2W471MELB40) and manufacturer (e.g., Nexperia USA Inc. → Nichicon).

Capacitance: 470μF
Voltage Rating: 450V
Tolerance: ±20%
Operating Temperature Range: -25°C to 85°C
Package Type: Radial, Can-Snap-In
Polarization: Polarized
Ripple Current (Low Frequency): 2.32A @ 120 Hz
Ripple Current (High Frequency): 3.3176A @ 50 kHz
Application: Various, including power supplies and general-purpose circuits
