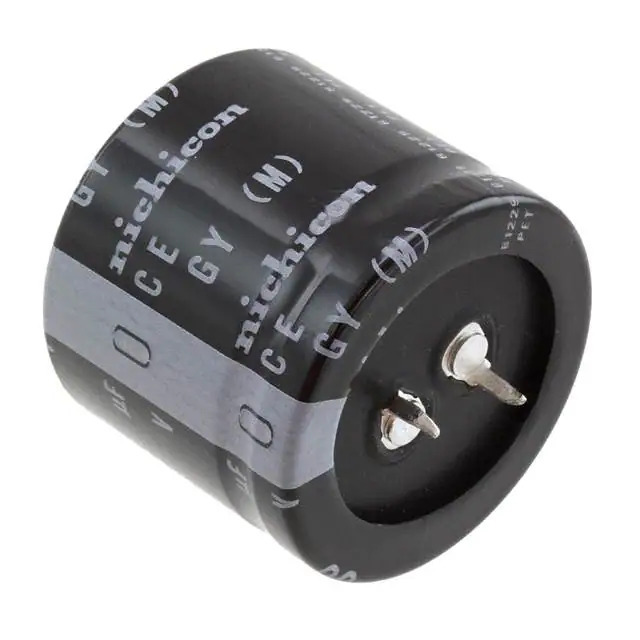

Same model may have multiple batches, images only for reference.
LGY1H682MELC30 Nichicon
Same model may have multiple batches, images only for reference.

LGY1H682MELC30

Part No LGY1H682MELC30
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 6800UF 20% 50V SNAP
Datasheet
LGY1H682MELC30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGY
Package Bulk
Product Status Active
Capacitance 6800 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.5 A @ 120 Hz
Ripple Current @ High Frequency 2.875 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.260" (32.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1378797-LGY1H682MELC30
Ultra Librarian 3D Model Ultra Librarian LGY1H682MELC30 CAD Model

Description

The LGY1H682MELC30 is an aluminum electrolytic capacitor from Nichicon.

  • Series: LGY
  • Application: General Purpose
  • Capacitance: 6800 μF
  • Voltage Rating: 50 V
  • Temperature Range: -40°C to 105°C
  • Package: Radial, Can-Snap-In
  • Mounting Type: Through Hole
  • Lead Spacing: 10.00mm
  • Size: 1.378" Diameter
  • Lifetime: 5000 hours @ 105°C
  • Ripple Current: 2.5 A @ 120 Hz, 2.875 A @ 50 kHz
  • Product Status: Active
  • REACH: Unaffected
