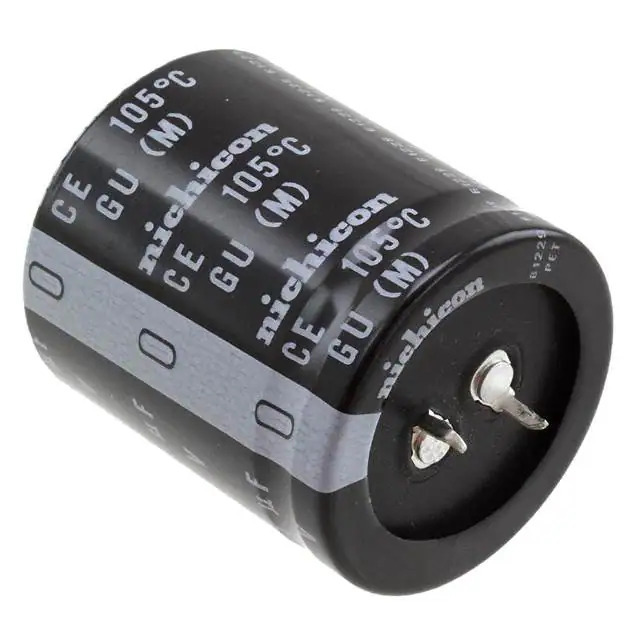

LGU1H103MELC Nichicon
Same model may have multiple batches, images only for reference.

LGU1H103MELC

Part No LGU1H103MELC
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10000UF 20% 50V SNAP / 10000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGU1H103MELC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGU
Package Bulk
Product Status Active
Capacitance 10000 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 4.07 A @ 120 Hz
Ripple Current @ High Frequency 4.6805 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360783-LGU1H103MELC
Ultra Librarian 3D Model Ultra Librarian LGU1H103MELC CAD Model

Description

The LGU1H103MELC is a radial, snap-in aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 10000µF
  • Voltage Rating: 50V
  • Application: General-Purpose
  • Operating Temperature: -40°C to 105°C
  • Lifetime: 3000 hours @ 105°C
  • Size: 1.378" diameter and 1.654" height
  • Ripple Currents (Low Frequency): 4.07A @ 120Hz
  • Ripple Currents (High Frequency): 4.6805A @ 50kHz
  • Mounting: Through-hole
  • Status: Active
  • MSL: Not Applicable
  • REACH: Not affected
  • Polarized: Yes
  • Tolerance: ±20%
