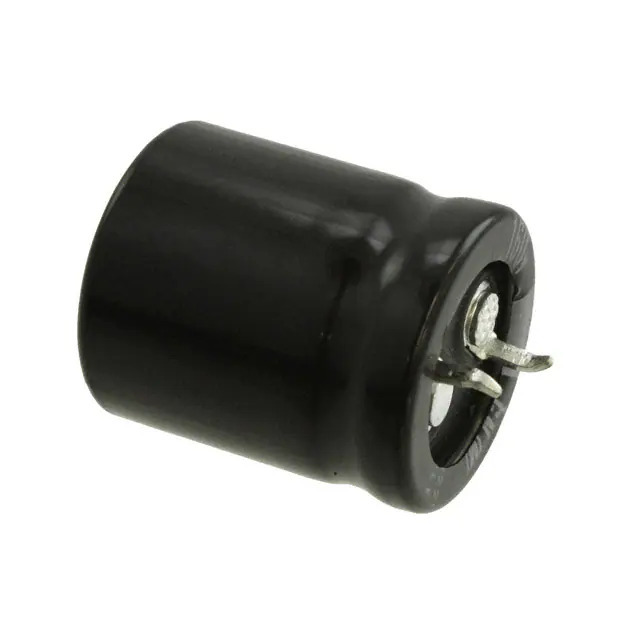

LGN2H560MELZ25

Name: LGN2H560MELZ25
Brand: Nichicon
SKU: 1360718
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LGN2H560MELZ25
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 56UF 20% 500V SNAP / 56 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet	LGN2H560MELZ25 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGN
Package	Bulk
Product Status	Active
Capacitance	56 µF
Tolerance	±20%
Voltage - Rated	500 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	470 mA @ 120 Hz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360718-LGN2H560MELZ25
Ultra Librarian 3D Model	Ultra Librarian LGN2H560MELZ25 CAD Model

Description

The LGN2H560MELZ25 is an aluminum electrolytic capacitor from Nichicon's LGN series.

Manufacturer: Nichicon
Product: LGN2H560MELZ25
Series: LGN
Capacitance: 56 µF
Voltage Rating: 500 V
Tolerance: ±20%
Application: General Purpose
Ripple Current: 470 mA @ 120 Hz
Lead Spacing: 0.394" (10.00mm)
Size/Dimension: 0.866" Diameter (22.00mm)
Polarization: Polarized
Height: 1.063" (27.00mm)
Mounting: Through-Hole
Lifetime: 3,000 hours @ 105°C
Status: Active
REACH: Unaffected
