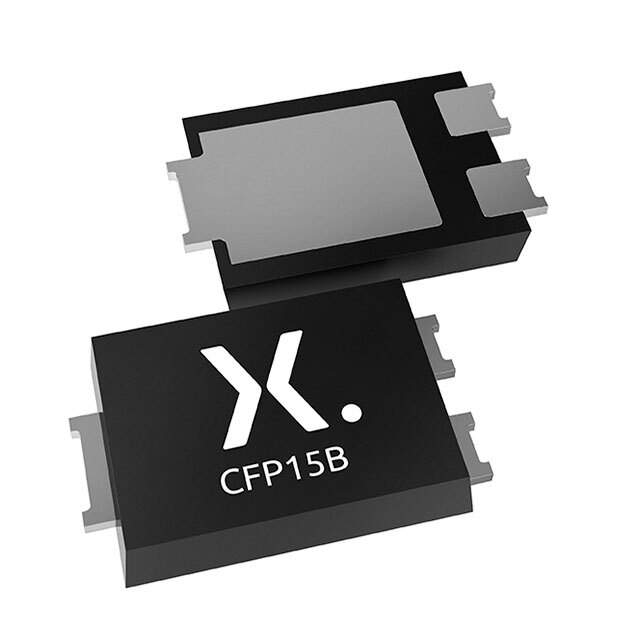

PMEG100V080ELPDZ

Name: PMEG100V080ELPDZ
Brand: Nexperia USA Inc.
SKU: 1085660
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PMEG100V080ELPDZ
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 100V 8A CFP15 / Diode Schottky 100 V 8A Surface Mount CFP15
Datasheet	PMEG100V080ELPDZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	8A
Voltage - Forward (Vf) (Max) @ If	850 mV @ 8 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	10 ns
Current - Reverse Leakage @ Vr	500 nA @ 100 V
Capacitance @ Vr, F	110pF @ 10V, 1MHz
Mounting	SMD (SMT)
Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	CFP15
Operating Temperature - Junction	175°C (Max)
Base Product Number	PMEG100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	934069521146,1727-2692-6,PMEG100V080ELPDZ-ND,568-13211-6,1727-2692-1,568-13211-1,568-13211-2,568-13211-6-ND,568-13211-1-ND,568-13211-2-ND,1727-2692-2
Standard Package	1,500
Win Source Part Number	1085660-PMEG100V080ELPDZ
Ultra Librarian 3D Model	Ultra Librarian PMEG100V080ELPDZ CAD Model

Alternative Products

Description

The PMEG100V080ELPDZ is a Schottky diode from Nexperia USA Inc.

Maximum Reverse Voltage: 100 V
Average Rectified Current: 8 A
Forward Voltage: 850 mV @ 8 A
Reverse Recovery Time: 10 ns
Capacitance: 110 pF @ 10 V and 1 MHz
Packaging: Tape and Reel, 1,500 units
Mounting Type: SMD (SMT)
Category: Diodes - Rectifiers - Single
Application: Rectifier
Operating Temperature: Up to 175°C (Max)
