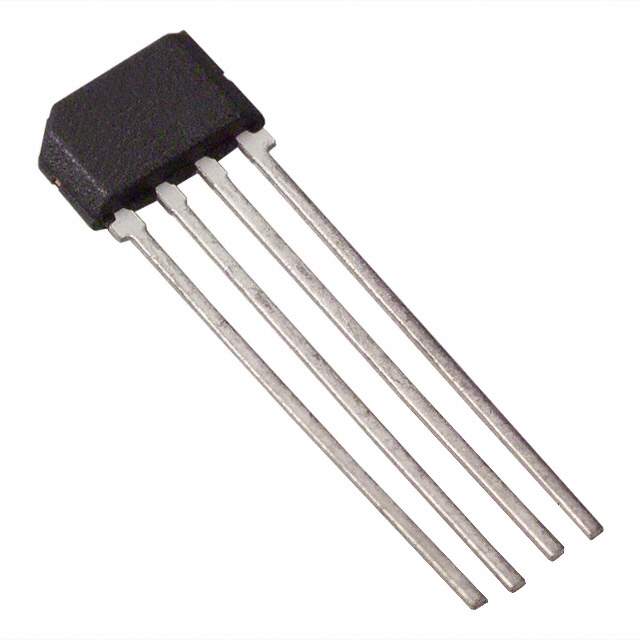

MLX91209LVA-CAA-000-BU Real Image
Same model may have multiple batches, images only for reference.

MLX91209LVA-CAA-000-BU

Part No MLX91209LVA-CAA-000-BU
Manufacturer Melexis Technologies NV
Catalog Current Transducers
Description SENSOR CURRENT HALL 45MT AC/DC / Current Sensor 45mT 1 Channel Hall Effect, Open Loop Bidirectional 4-SSIP Module
Datasheet
MLX91209LVA-CAA-000-BU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Melexis Technologies NV
Package Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 45mT
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 50mV/mT
Frequency DC ~ 200kHz
Linearity ±0.4%
Accuracy ±0.1%
Voltage - Supply 5V
Response Time 4µs
Current - Supply (Max) 14mA
Temperature Range - Operating -40°C ~ 125°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case 4-SSIP Module
Supplier Device Package 4-SIP
Base Product Number MLX91209
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1153856-MLX91209LVA-CAA-000-BU
Ultra Librarian 3D Model Ultra Librarian MLX91209LVA-CAA-000-BU CAD Model

Description

The MLX91209LVA-CAA-000-BU is a current sensor IC from Melexis Technologies NV.

  • Function: Measuring AC/DC Current
  • Response Time: 4µs
  • RoHS: Non-Compliant
  • Operating Temperature: -40°C to 125°C
