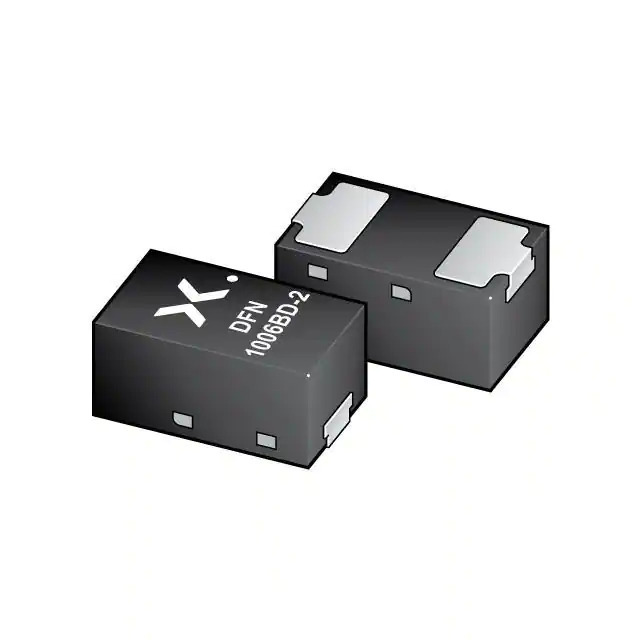

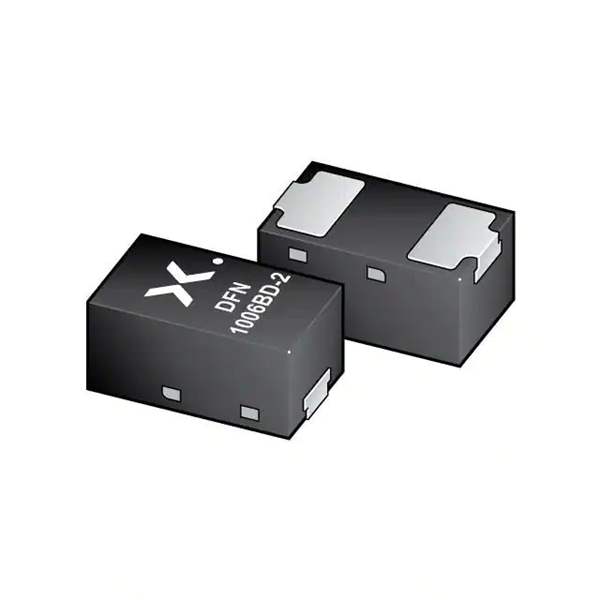

PESD1IVN24-LSYL Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD1IVN24-LSYL

Part No PESD1IVN24-LSYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 42VC DFN1006BD-2 / 42V Clamp 3.5A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006BD-2
Datasheet
PESD1IVN24-LSYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V (Max)
Voltage - Breakdown (Min) 25.5V
Voltage - Clamping (Max) @ Ipp 42V
Current - Peak Pulse (10/1000µs) 3.5A (8/20µs)
Power - Peak Pulse -
Power Line Protection No
Applications Automotive, CAN
Capacitance @ Frequency 14pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case SOD-882
Supplier Device Package DFN1006BD-2
Base Product Number PESD1IVN24
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362246-PESD1IVN24-LSYL
Ultra Librarian 3D Model Ultra Librarian PESD1IVN24-LSYL CAD Model

Description

The PESD1IVN24-LSYL is a transient voltage suppressor diode designed for circuit protection in automotive applications. It has a temperature range of -55°C to 150°C, making it suitable for harsh operating conditions.

  • Channel Configuration: Bidirectional
  • Reverse Standoff Voltage: 24V
  • Clamping Voltage: 42V
  • Peak Pulse Current: 3.5A
  • Mounting Type: Surface mountable
  • Package: SOD-882
  • REACH: Unaffected
  • ECCN: EAR99
  • Features: Low capacitance, high reliability
  • Application: Automotive systems for transient voltage spike protection
