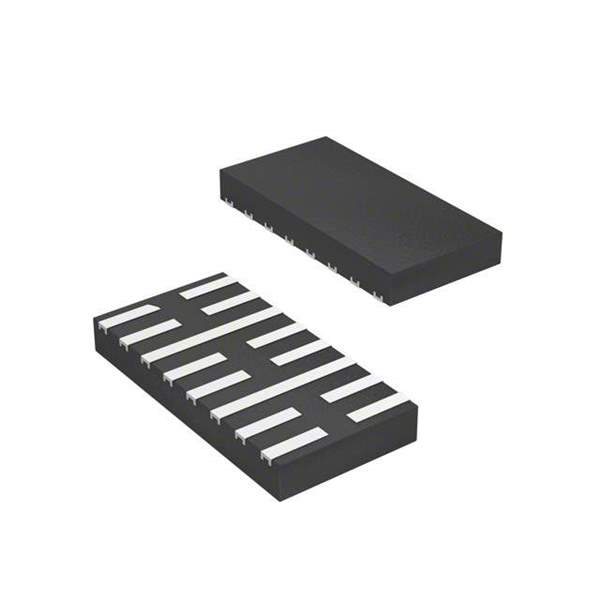

PCMF3DFN1X Real Image
Same model may have multiple batches, images only for reference.

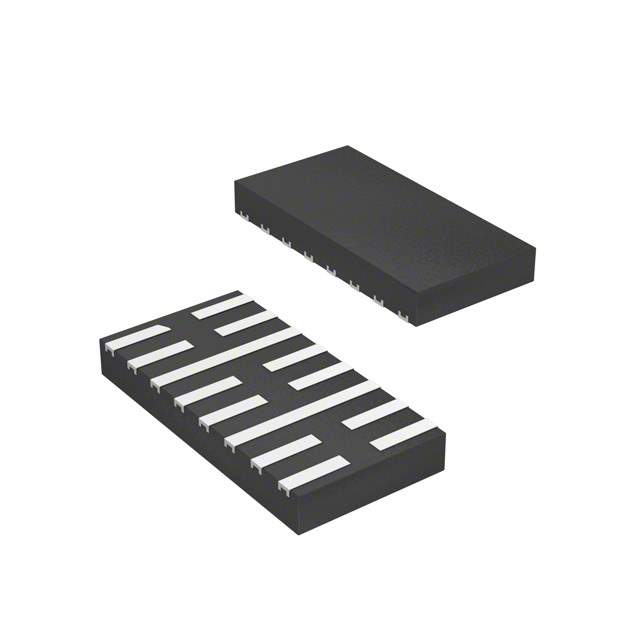

PCMF3DFN1X

Part No PCMF3DFN1X
Manufacturer Nexperia USA Inc.
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 6LN SMD ESD / EMI Filter RC-Circuit Flat Style SMD T/R
Datasheet
PCMF3DFN1X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Series PCM
Packaging Reel package
Part Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 6
DC Resistance (DCR) (Maximum) 5 Ohm (Typ)
Operating Temperature Range -40°C ~ 85°C
Features ESD
Mounting SMD
Dimension 0.157" L x 0.079" W (4.00mm x 2.00mm)
Height (Maximum) 0.020" (0.50mm)
Package 14-XFDFN
Win Source Part Number 791598-PCMF3DFN1X
Popularity Medium
Supply and Demand Status Limited
Family Name PCMF
Introduction Date April 28, 2014
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PCMF3DFN1X CAD Model

Description

The Nexperia USA Inc. PCM series filter is a signal line filter with ESD protection from Nexperia USA Inc..

  • Package: 14-XFDFN
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Series: PCMF
  • Status: Obsolete (EOL)
  • Current Rating: 5 Ohm (Typ) Max
  • Compliance: Halogen-Free
  • Package Dimensions: 0.157" L x 0.079" W (4.00mm x 2.00mm), Height 0.020" (0.50mm) Max
