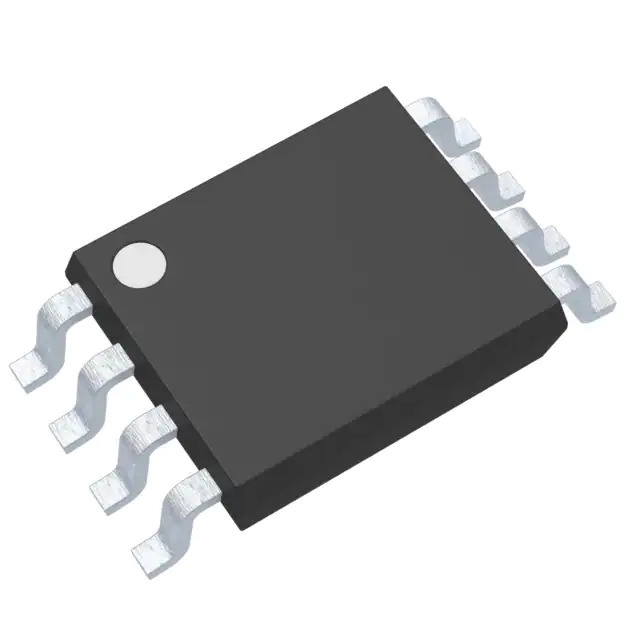

NXS0102DC-Q100H Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

NXS0102DC-Q100H

Part No NXS0102DC-Q100H
Manufacturer Nexperia USA Inc.
Catalog Logic - Translators, Level Shifters
Description IC TRANSLTR BIDIRECTIONAL 8VSSOP
Datasheet
NXS0102DC-Q100H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Translators, Level Shifters
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 2
Voltage - VCCA 1.65 V ~ 3.6 V
Voltage - VCCB 2.3 V ~ 5.5 V
Input Signal -
Output Signal -
Output Type Open Drain
Data Rate 24Mbps
Temperature Range - Operating -40°C ~ 125°C (TA)
Features -
Mounting Type Surface Mount
Package / Case 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package 8-VSSOP
Base Product Number NXS0102
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371038-NXS0102DC-Q100H
Ultra Librarian 3D Model Ultra Librarian NXS0102DC-Q100H CAD Model

Description

The NXS0102DC-Q100H is a voltage level translator integrated circuit from the NXS0102 series designed for automotive applications.

  • Manufacturer: Nexperia USA Inc.
  • Temperature Range: -40°C to 125°C
  • Channel Type: Bidirectional
  • Data Rate: 24Mbps
  • VCCA Voltage Range: 1.65V to 3.6V
  • VCCB Voltage Range: 2.3V to 5.5V
  • Package: 8-VSSOP
  • Width: 2.30mm
  • Mounting Type: Surface Mount
  • Status: Active
  • Package Type: Tape and Reel
