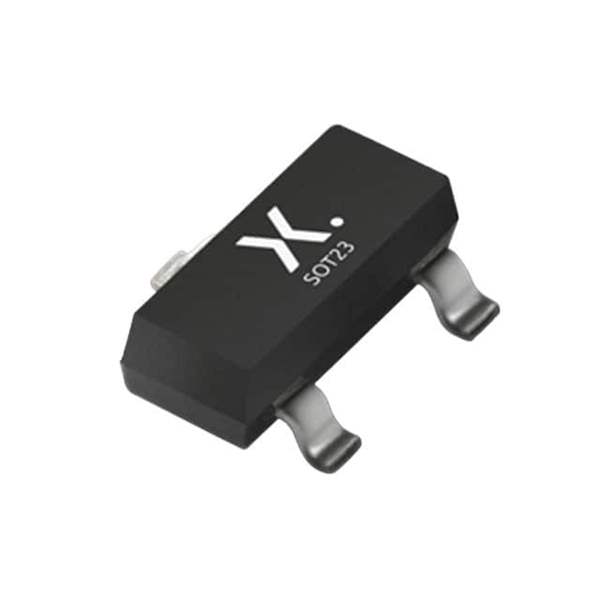

MMBZ20VAL,215

Part No MMBZ20VAL,215
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 17VWM 28VC TO236AB / 28V Clamp 1.4A Ipp Tvs Diode Surface Mount TO-236AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Type Zener
Unidirectional Channels 2
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 17V (Max)
Voltage - Breakdown (Min) 19V
Voltage - Clamping (Max) @ Ipp 28V
Current - Peak Pulse (10/1000µs) 1.4A
Power - Peak Pulse 40W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency 65pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB
Base Product Number MMBZ20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 568-11222-6-ND,2156-MMBZ20VAL,215-NEX,MMBZ20VAL,215-ND,568-11222-1,568-11222-2,568-11222-6,1727-1684-1,934061799215,568-11222-1-ND,1727-1684-6,568-11222-2-ND,NEXNEXMMBZ20VAL,215,1727-1684-2
Standard Package 3,000
Win Source Part Number 1079453-MMBZ20VAL,215
Ultra Librarian 3D Model Ultra Librarian MMBZ20VAL,215 CAD Model

Description

The MMBZ20VAL,215 is a zener diode designed for use in circuit protection and TVS applications. It is manufactured by Nexperia USA Inc. and is part of the automotive, AEC-Q101 series.

  • Channel (Unidirectional): 2
  • Channel (Bidirectional): 1
  • Reverse Standoff Voltage (Max): 17V
  • Breakdown Voltage (Min): 19V
  • Clamping Voltage: 28V @ Ipp
  • Peak Pulse Power: 40W
  • Mounting: SMD (SMT)
  • Package: TO-236-3, SC-59, SOT-23-3
  • Capacitance: 65pF @ 1MHz
  • Peak Pulse Current (10/1000µs): 1.4A
