Same model may have multiple batches, images only for reference.

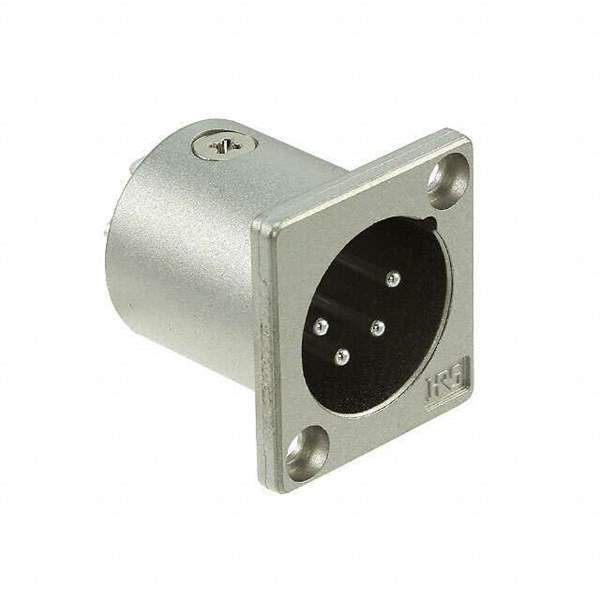

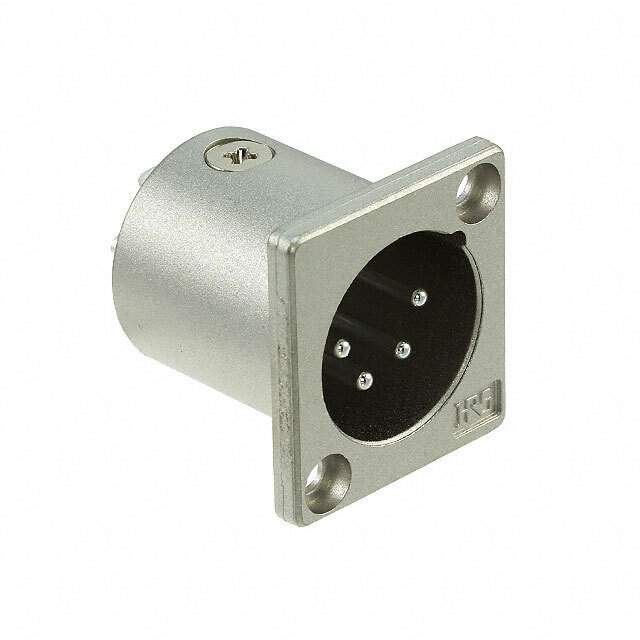

HA16RA-4P(76) Real Image
Same model may have multiple batches, images only for reference.

HA16RA-4P(76)

Part No HA16RA-4P(76)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 4P SILV SLDR CUP / 4 Position Circular Connector Receptacle, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series HA
Package Bulk
Product Status Last Time Buy
Connector Type Receptacle, Male Pins
Number of Positions 4
Shell Size - Insert 16
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Push-Pull
Orientation Keyed
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Ground
Shielding Shielded
Current Rating (Amps) 5A
Voltage Rating 130VAC, 180VDC
Cable Opening 0.748" (19.00mm)
Temperature Range - Operating -25°C ~ 70°C
Contact Material Brass
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Insert Material Polyamide (PA) , Nylon
Applications Industrial
Base Product Number HA16
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1338519-HA16RA-4P(76)
Ultra Librarian 3D Model Ultra Librarian HA16RA-4P(76) CAD Model

Description

The HA16RA-4P(76) is a 4-position circular connector assembly from Hirose Electric Co Ltd.

  • Positions: 4
  • Fastening Type: Push-Pull
  • Termination: Solder Cup
  • Voltage Rating: 130VAC
  • Current Rating: 5A
  • Temperature Range: -25°C to 70°C
  • Mounting Type: Panel Mount
  • Shell Size: 16
  • Shell Material: Aluminum Alloy, Nickel Finish
  • Series: HA
  • Status: Last Time Buy
