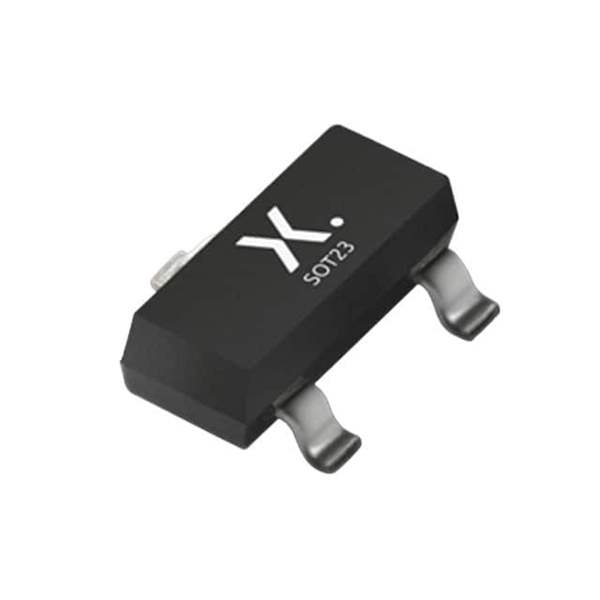

The 2N7002/HAMR is an N-channel MOSFET transistor manufactured by Nexperia USA Inc. The Win Source Part Number for this product is 958338-2N7002/HAMR.

• Suitable for: Discrete semiconductor products and transistors
• Maximum Drain to Source Voltage (Vdss): 60V
• Continuous Drain Current (Id): 300mA @ 25°C
• Rds On (Max) @ Id, Vgs: 5Ohm @ 500mA, 10V
• Maximum Vgs(th) @ Id: 2.5V @ 250µA
• Maximum Power Dissipation: 830mW @ Tc
• Package/Case: TO-236-3, SC-59, SOT-23-3
• Supplier Device Package: TO-236AB
• Input Capacitance (Ciss) (Max) @ Vds: 50 pF @ 10 V
• Maximum Vgs: ±30V
• Operating Temperature Range: -65°C to 150°C (TJ)
• Alternative Parts: 2N7002/HAMR2N7002HAMR
• HTSUS Code: 8541.21.0095
