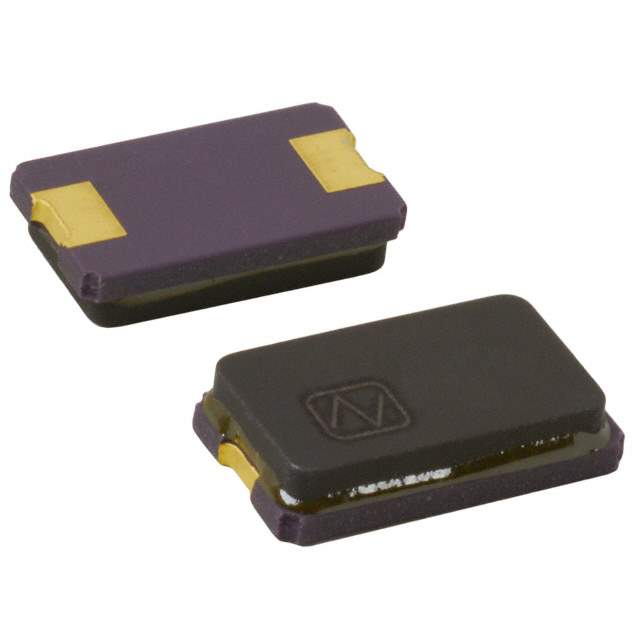

NX8045GB-8.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

NX8045GB-8.000000MHZ

Part No NX8045GB-8.000000MHZ
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 8.0000MHZ 8PF SMD / 8 MHz ±50ppm Crystal 8pF 200 Ohms 2-SMD, No Lead
Datasheet
NX8045GB-8.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX8045GB
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 200 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names 644-1018-2,644-1018-1,644-1018-6,NX8045GB-8.000000MHZ-LN-CF-001,50157467,Q4756484,NX8045GB8000000MHZ
Standard Package 1,000
Win Source Part Number 1027556-NX8045GB-8.000000MHZ
Ultra Librarian 3D Model Ultra Librarian NX8045GB-8.000000MHZ CAD Model

Description

The MHz Crystal NX8045GB-8.000000MHZ is a high-quality crystal designed for use in various electronic applications.

  • Package: 2-SMD, No Lead
  • Frequency: 8 MHz
  • Frequency Tolerance: ±50ppm
  • Load Capacitance: 8pF
  • Mounting: Surface Mount
  • Temperature Range: -10°C to 70°C
  • RoHS Compliance: Compliant
  • Packaging: Tape and Reel
  • Description: High-performance crystal oscillator.
