Same model may have multiple batches, images only for reference.

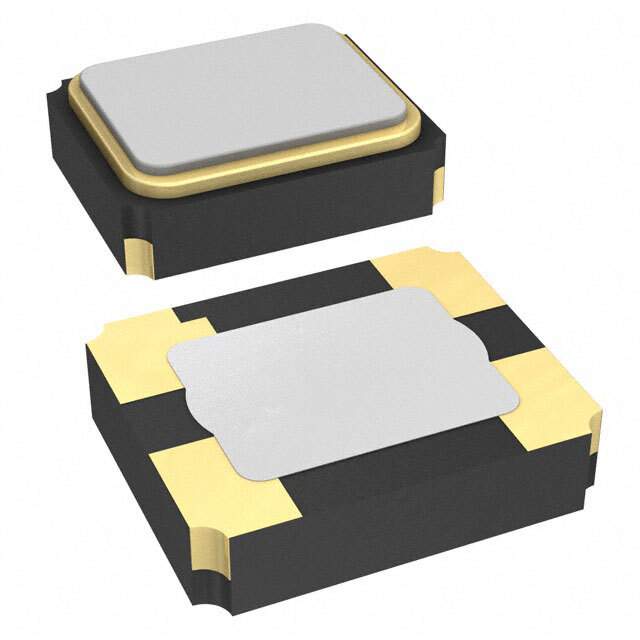

NT2016SA-32M-END4263A Real Image
Same model may have multiple batches, images only for reference.

NT2016SA-32M-END4263A

Part No NT2016SA-32M-END4263A
Manufacturer NDK
Catalog Oscillators
Description XTAL OSC TCXO 32.0000MHZ SMD / 32 MHz TCXO Oscillator 1.8V 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr NDK America, Inc.
Series NT2016SA
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 32 MHz
Voltage - Supply 1.8V
Frequency Stability ±2ppm
Temperature Range - Operating -30°C ~ 85°C
Current - Supply (Max) 1.5mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 2,000
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1336830-NT2016SA-32M-END4263A
Ultra Librarian 3D Model Ultra Librarian NT2016SA-32M-END4263A CAD Model

Description

The NT2016SA-32M-END4263A is a TCXO oscillator from NDK America, Inc.

  • Series: NT2016SA
  • Packaging: Tape & Reel
  • Size/Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height - Seated (Max): 0.031" (0.80mm)
  • Frequency: 32 MHz
  • Frequency Stability: ±2ppm
  • Voltage Supply: 1.8V
  • Mounting Type: Surface Mount
  • Package/Case: 4-SMD, No Lead
  • Operating Temperature: -30°C ~ 85°C
