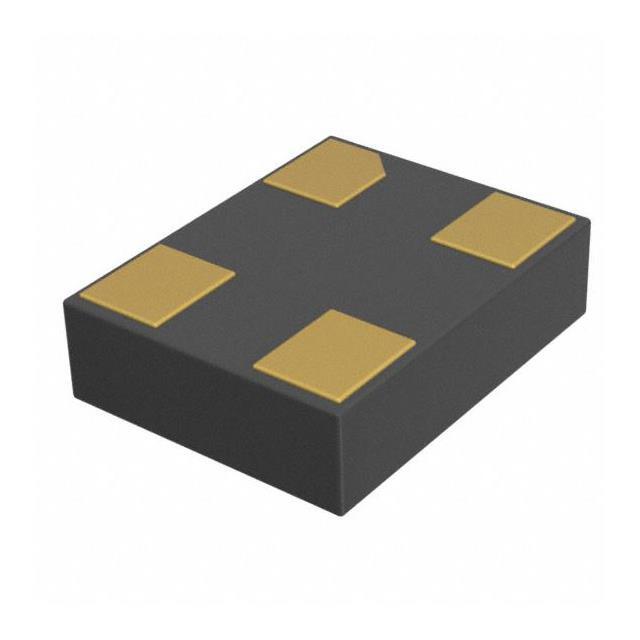

Same model may have multiple batches, images only for reference.
DSC1001DL5-025.0000T Microchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DSC1001DL5-025.0000T

Part No DSC1001DL5-025.0000T
Manufacturer Microchip Technology
Catalog Oscillators
Description MEMS OSC XO 25.0000MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Base Resonator MEMS
Type XO (Standard)
Frequency 25 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±10ppm
Temperature Range - Operating -40°C ~ 105°C
Current - Supply (Max) 8mA
Mounting Type Surface Mount
Case / Package 4-VDFN
Supplier Device Package 4-CDFN (2.5x2)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035\
Package Strip
Supply and Demand Status Shortage
Win Source Part Number 1529681-DSC1001DL5-025.0000T
Ultra Librarian 3D Model Ultra Librarian DSC1001DL5-025.0000T CAD Model
