The DS25BR101TSDX from Texas Instruments (formerly National Semiconductor) is a 2.5 Gbps 1-channel buffer/repeater designed for high-speed signal transmission over various interconnect media. It's primarily used to extend the reach and improve the signal integrity of data links. This device employs a differential signaling technique, ensuring robust performance in noisy environments.

Applications:

• Backplane Interconnects: Used in server and storage systems to improve signal quality over long backplane traces.
• Cable Extension: Extends the reach of cables in data centers and communication systems.
• Video Distribution: Employed in video systems to transmit high-definition video signals over longer distances without degradation.
• Storage Area Networks (SAN): Enhances signal integrity in SAN environments.
• High-Speed Serial Data Transmission: General purpose repeater for any application requiring reliable transmission of serial data up to 2.5 Gbps.

Features:

• Data Rate: Supports data rates up to 2.5 Gbps.
• Differential Signaling: Utilizes differential signaling for high noise immunity.
• Low Power Consumption: Designed for efficient power usage.
• Input Equalization: Includes input equalization to compensate for channel losses.
• Output Pre-emphasis: Features output pre-emphasis to further improve signal integrity.
• Small Package: Available in a compact package for space-constrained applications.

Benefits:

• Extended Reach: Extends the usable distance of high-speed data links.
• Improved Signal Integrity: Enhances signal quality by reducing jitter and ISI (Inter-Symbol Interference).
• Reduced Bit Error Rate (BER): Lowers the BER, leading to more reliable data transmission.
• System Cost Savings: Reduces the need for expensive, high-quality cables.
• Design Flexibility: Offers flexibility in system design by allowing for longer trace lengths or cable runs.

Additional Details:

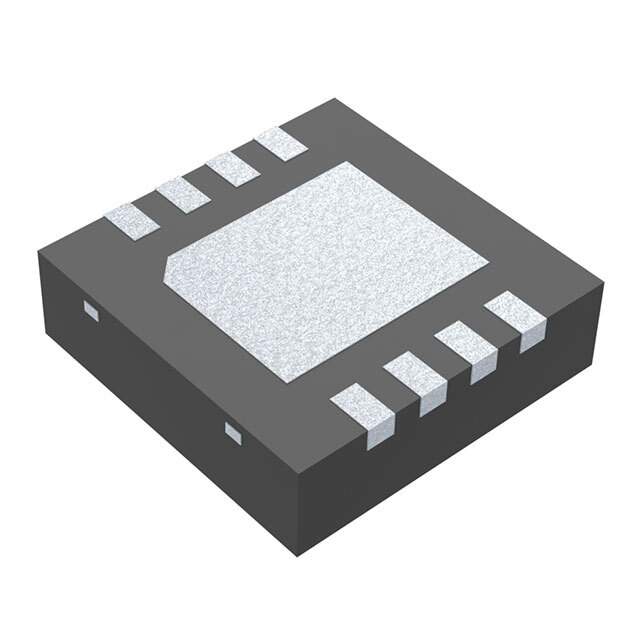

The DS25BR101TSDX operates from a single 3.3V power supply. It incorporates adaptive equalization to compensate for signal loss in the transmission medium. This equalization is adjustable, allowing for optimization based on the specific application. The device also includes pre-emphasis, which further enhances signal quality. The operating temperature range is typically -40°C to +85°C. This part comes in a TQFN package. The input impedance is 100 ohms differential, and the output impedance is also 100 ohms differential.

The device is designed to be transparent to the data stream, meaning it does not alter the data being transmitted. It simply amplifies and reshapes the signal to improve its quality. The DS25BR101TSDX is commonly used with various serial protocols, including PCI Express, SATA, and Gigabit Ethernet. Its robust performance and compact size make it suitable for a wide range of applications requiring high-speed data transmission.
