ADC0804LCV
Same model may have multiple batches, images only for reference.

ADC0804LCV

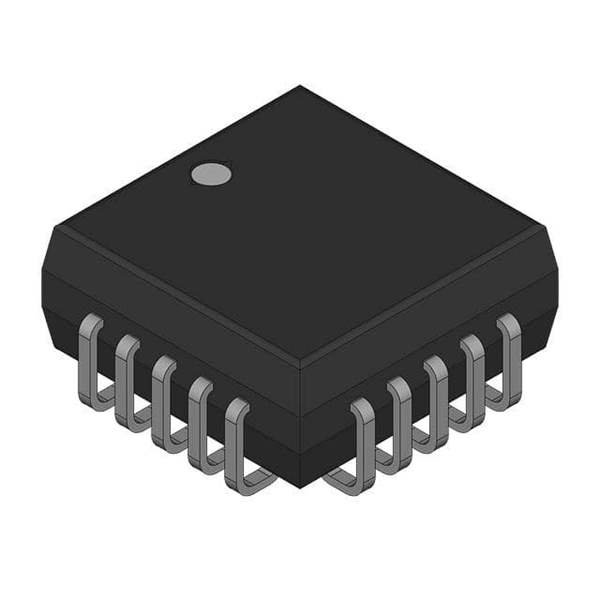

Part No ADC0804LCV
Manufacturer National Semiconductor (TI)
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description SAR ADC, 8-BIT, PARALLEL ACCESS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters (ADC)
Mfr National Semiconductor (TI)
Series ADC0804
Package Bulk
Product Status Active
Number of Bits 8
Sampling Rate (Per Second) 10k
Number of Inputs 1
Input Type Differential
Data Interface Parallel
Configuration ADC
Number of A/D Converters 1
Architecture SAR
Voltage - Supply, Analog 4.5V ~ 5.5V
Voltage - Supply, Digital 4.5V ~ 5.5V
Temperature Range - Operating 0°C ~ 70°C
Package / Case 20-LCC (J-Lead)
Supplier Device Package 20-PLCC (9x9)
Mounting Type Surface Mount
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 859908-ADC0804LCV
Ultra Librarian 3D Model Ultra Librarian ADC0804LCV CAD Model

Description

The 859908-ADC0804LCV is an analog to digital converter (ADC) IC from the ADC0804 series.

  • GPTDescription: It is designed for data acquisition applications and has a configuration of ADC with 1 input.
  • GPTDescription: The 859908-ADC0804LCV features a differential input type and utilizes successive approximation register (SAR) architecture.
  • GPTDescription: It has 8 bits and a sampling rate of 10k per second.
  • GPTDescription: The data interface for this IC is parallel and it has a single A/D converter.
  • GPTDescription: The voltage supply range for both analog and digital is 4.5V to 5.5V.
  • GPTDescription: It is surface mount mounted and comes in a 20-LCC (J-Lead) package.
  • GPTDescription: The 859908-ADC0804LCV operates within a temperature range of 0°C to 70°C.
  • GPTDescription: It is an active product manufactured by National Semiconductor (TI).
