Same model may have multiple batches, images only for reference.

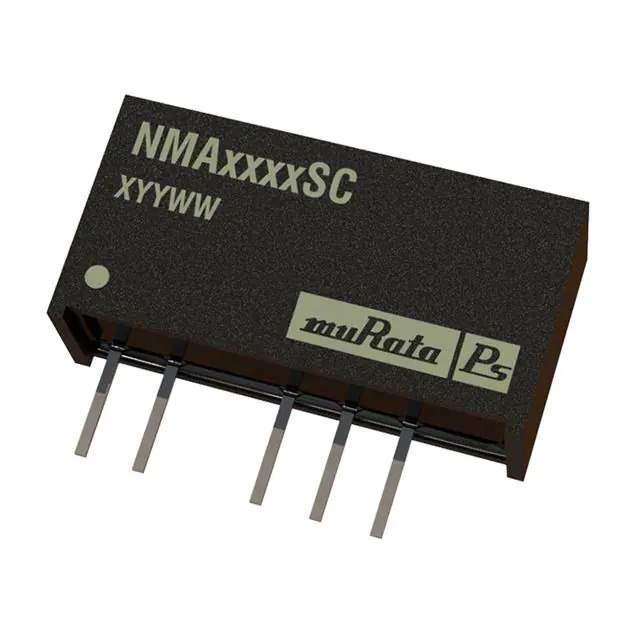

NMA1209SC Real Image
Same model may have multiple batches, images only for reference.

NMA1209SC

Part No NMA1209SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMA (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 55mA, 55mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Base Product Number NMA12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649112-NMA1209SC
Ultra Librarian 3D Model Ultra Librarian NMA1209SC CAD Model

Description

The NMA1209SC is a 1W isolated module DC-DC converter designed for power supplies in commercial applications.

  • Power: 1W
  • Application: commercial applications
  • Voltage Isolation: 1 kV
  • Maximum Output Current: 55mA
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltage: 9V and -9V
  • Efficiency: 74%
  • Package: 7-SIP module package with 5 leads
  • Installation: easy to install and integrate into your system
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: Murata Power Solutions Inc.
  • Series: NMA series
  • Standard Package: 25 pcs
