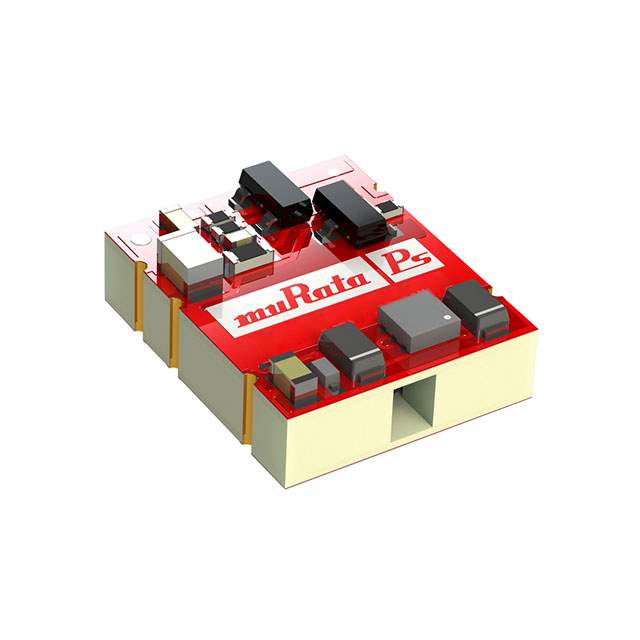

NXE2S0505MC-R13 Real Image
Same model may have multiple batches, images only for reference.

NXE2S0505MC-R13

Part No NXE2S0505MC-R13
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NXE2 (2W)
Package Tape & Reel (TR) Cut Tape (CT)
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 72%
Mounting Type Surface Mount
Package / Case 14-SMD Module, 5 Leads
Size / Dimension 0.50" L x 0.40" W x 0.17" H (12.7mm x 10.4mm x 4.4mm)
Base Product Number NXE2S05
Standard Package 800
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1348105-NXE2S0505MC-R13
Ultra Librarian 3D Model Ultra Librarian NXE2S0505MC-R13 CAD Model

Description

The NXE2S0505MC-R13 is an isolated module DC-DC converter that is designed to provide 2W power.

  • Series: NXE2
  • Function: Isolated
  • Output Power: 2W
  • Applications: Commercial
  • Features: Short Circuit Protection
  • Input - Voltage (Min): 4.5V
  • Input - Voltage (Max): 5.5V
  • Output - Voltage: 5V
  • Efficiency: 72%
  • Number of Outputs: 1
  • Package / Case: 14-SMD Module, 5 Leads
  • Operating Temperature: -40°C ~ 85°C
  • Packaging: Tape & Reel, Cut Tape
  • Standard Package: 800
