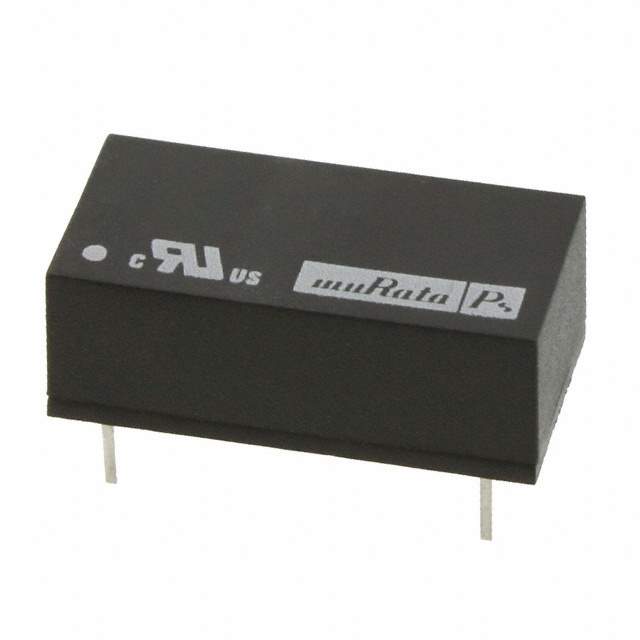

NKA0505DC Real Image
Same model may have multiple batches, images only for reference.

NKA0505DC

Part No NKA0505DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 70%
Mounting Through Hole
Case / Package 14-DIP Module, 6 Leads
Size / Dimension 0.77" L x 0.39" W x 0.21" H (19.5mm x 9.8mm x 5.4mm)
Base Product Number NKA05
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 25
Win Source Part Number 1335252-NKA0505DC
Ultra Librarian 3D Model Ultra Librarian NKA0505DC CAD Model

Description

The Murata Power Solutions Inc. NKA0505DC is an isolated module DC-DC converter that comes in a 14-DIP module with 6 leads.

  • Size: 0.77 inches in length, 0.39 inches in width, and 0.21 inches in height
  • Power Rating: 1 W
  • Efficiency: 70%
  • Outputs: Two
  • Output Voltage: 5V and -5V
  • Input Voltage Range: Between 4.5V and 5.5V
  • Application: ITE (Commercial)
  • Voltage Isolation: 3 kV
  • Operating Temperature Range: Between -40°C and 85°C
  • Mounting Type: Through a hole
  • Package: Tube
  • Status: Obsolete
  • Standard Package: 25
