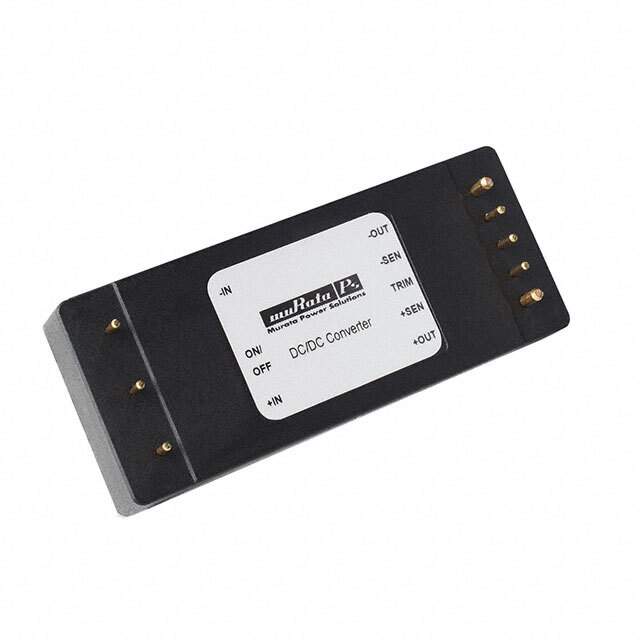

IRE-24/5-Q12P-C Real Image
Same model may have multiple batches, images only for reference.

IRE-24/5-Q12P-C

Part No IRE-24/5-Q12P-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 120W / Isolated Module DC DC Converter 1 Output 24V 5A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series IRE-Q12 (120W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Current - Output (Max) 5A
Power (Watts) 120 W
Voltage - Isolation 2.828 kV
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off, Remote Sense
Temperature Range - Operating -40°C ~ 115°C (With Derating)
Efficiency 92%
Mounting Type Through Hole
Package / Case Eighth Brick
Size / Dimension 2.41" L x 1.01" W x 0.50" H (61.2mm x 25.7mm x 12.7mm)
Supplier Device Package Eighth Brick
Control Features Enable, Active High
Approval Agency cURus
Base Product Number IRE-24
Standard Package 36
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1338834-IRE-24/5-Q12P-C
Ultra Librarian 3D Model Ultra Librarian IRE-24/5-Q12P-C CAD Model

Description

The Murata Power Solutions isolated module, part number 1338834-IRE-24/5-Q12P-C, is designed for use in ITE (Commercial) applications.

  • Application: ITE (Commercial)
  • Power Rating: 120W
  • Number of Outputs: Single
  • Maximum Output Current: 5A
  • Input Voltage: 9V to 36V
  • Output Voltage: 24V
  • Efficiency: 92%
  • Mounting Type: Through Hole
  • Package Size: 2.41" L x 1.01" W x 0.50" H
  • Package: Eighth Brick
  • Voltage Isolation: 2.828 kV
  • Features: Adjustable Output, Remote On/Off, Remote Sense
