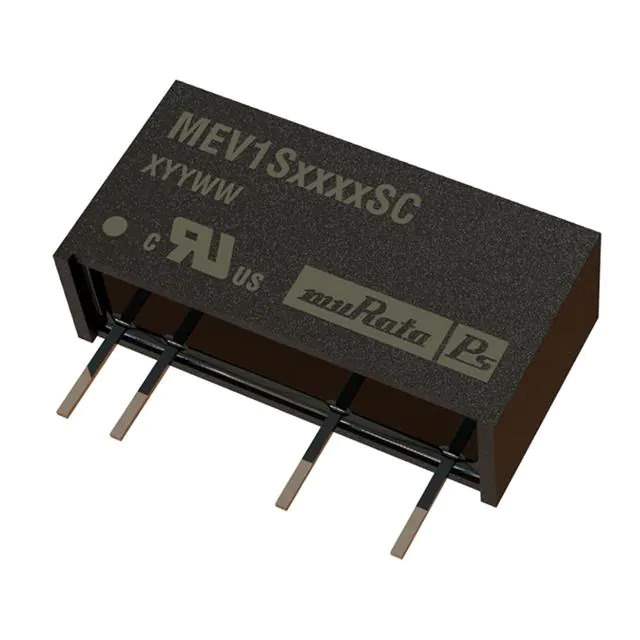

MEV1S0509SC Real Image
Same model may have multiple batches, images only for reference.

MEV1S0509SC

Part No MEV1S0509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 1W / Isolated Module DC DC Converter 1 Output 9V 111mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series MEV1 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Current - Output (Max) 111mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 86.5%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Base Product Number MEV1S05
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 848275-MEV1S0509SC
Ultra Librarian 3D Model Ultra Librarian MEV1S0509SC CAD Model

Description

The MEV1S0509SC is a 1W isolated module power supply from Murata Power Solutions Inc.

  • Series: MEV1
  • Applications: Power Supplies, Board Mount DC-DC Converters
  • Packaging: Tube
  • Size: 0.77" L x 0.24" W x 0.40" H
  • Voltage - Isolation: 3 kV
  • Output Current - Max: 111mA
  • Voltage - Input: 4.5V to 5.5V
  • Voltage - Output 1: 9V
  • Power (Watts): 1W
  • Efficiency: 86.5%
  • Applications: ITE (Commercial)
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Standard Package: 25 Pcs
