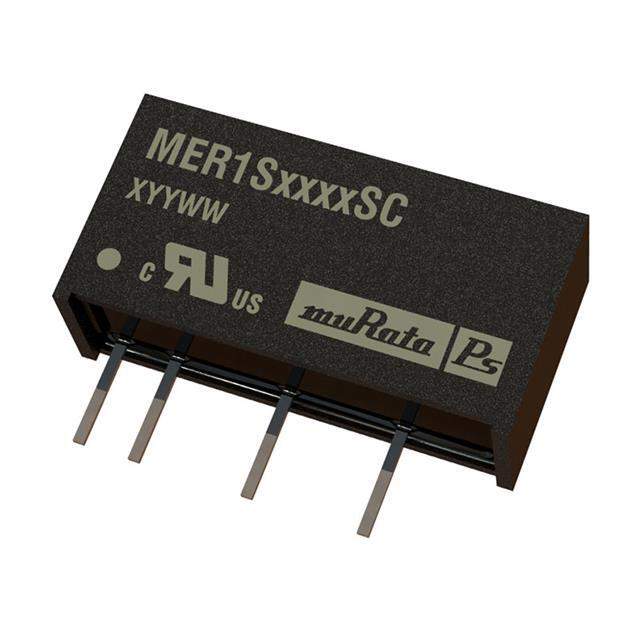

MER1S1505SC Real Image
Same model may have multiple batches, images only for reference.

MER1S1505SC

Part No MER1S1505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 1kVDC Isolated 1W Single Output DC/DC Converters
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series MER1
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 13.5V
Voltage Input MAX 16.5V
Voltage - Output 1 5V
Current - Output (Maximum) 200mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 85°C
Efficiency 83.5%
Mounting Style Through Hole
Package 7-SIP Module, 4 Leads
Size 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Win Source Part Number 1221723-MER1S1505SC
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name MER1S1505
Introduction Date September 15, 2009
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian MER1S1505SC CAD Model

Description

The Murata Power Solutions Inc. MER1S1505SC is an isolated module that comes in a 7-SIP Module, 4 Leads package.

  • Power Supply: 1W
  • Output: One
  • Voltage-Isolation: 1kV (1000V)
  • Application: ITE (Commercial)
  • Operating Temperature: -40°C to 85°C
  • Efficiency: 83.5%
  • Series: MER1
  • Mounting Type: Through Hole
  • Input Voltage Range: 13.5V to 16.5V
  • Voltage Output: 5V
  • Package Dimension: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)

The MER1S1505SC is now limited in supply and has alternative parts (cross-reference) such as PDM1-S15-S5-S, RP-1205S/X2, and RP-1205S/P/X2.
