Same model may have multiple batches, images only for reference.

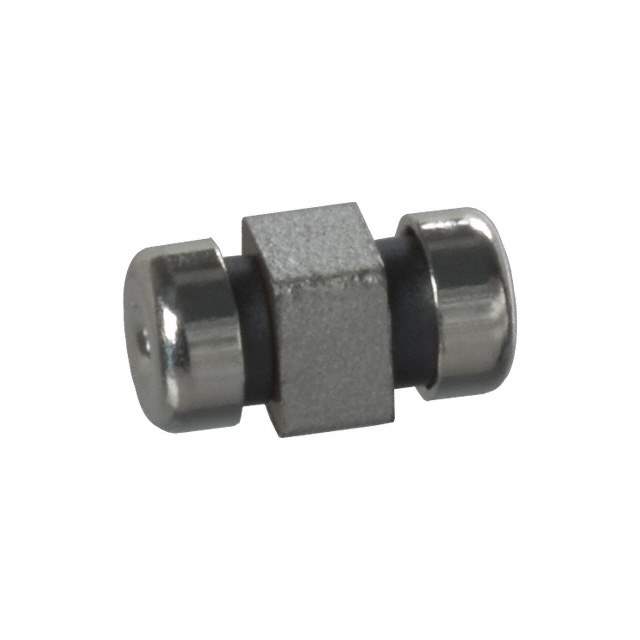

NFE31PT101C1E9L Real Image
Same model may have multiple batches, images only for reference.

NFE31PT101C1E9L

Part No NFE31PT101C1E9L
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 100PF SMD
Datasheet
NFE31PT101C1E9L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Current 6A
Values C = 100pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 25V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.069" (1.75mm)
Win Source Part Number 025225-NFE31PT101C1E9L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NFE31PT101C1E9L CAD Model

Description

The Murata Electronics North America NFE31PT101C1E9L is a Low Pass filter with a voltage rating of 25V and general-purpose applications.

  • Filter Type: LC (T-Type)
  • Height: 0.069" (1.75mm)
  • Current: 6A
  • Channels: One Channel
  • Filter Order: 3rd
  • Center/Cutoff Frequency: Unknown
  • Resistance - Channel (Ohms): Unknown
  • Value C: 100pF
  • ESD Protection: No ESD protection
  • Package: Reel - TR
  • Mounting: Surface Mount (SMT)
  • Supply and Demand: The supply and demand status is balanced.
