Same model may have multiple batches, images only for reference.

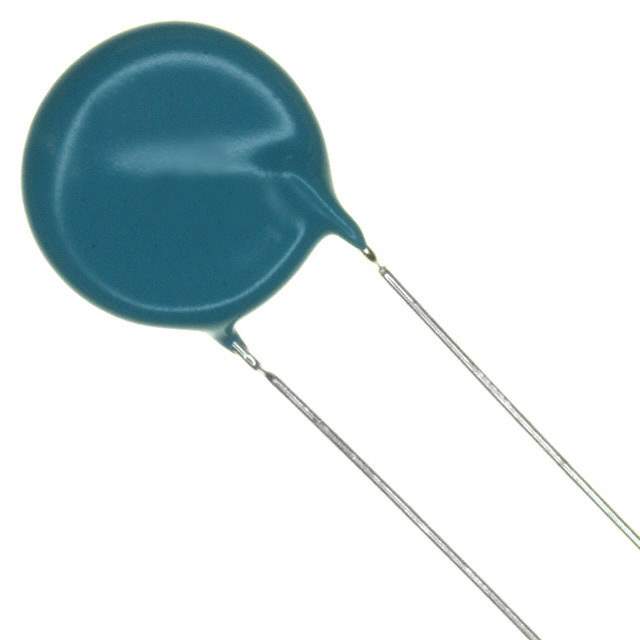

DEA1X3F391JA3B Real Image
Same model may have multiple batches, images only for reference.

DEA1X3F391JA3B

Part No DEA1X3F391JA3B
Manufacturer Murata Electronics North America
Catalog Ceramic Capacitors
Description CAP CER 390PF 3.15KV SL RADIAL / 390 pF ±5% 3150V (3.15kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Murata Electronics
Series DEA
Package Bulk
Product Status Obsolete
Capacitance 390 pF
Tolerance ±5%
Voltage - Rated 3150V (3.15kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.748" (19.00mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads
Base Product Number DEA1X3F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0060
Other Names 490-4204
Standard Package 100
Win Source Part Number 1168130-DEA1X3F391JA3B
Ultra Librarian 3D Model Ultra Librarian DEA1X3F391JA3B CAD Model

Description

The Murata Electronics DEA series ceramic capacitor with Win Source Part Number 1168130-DEA1X3F391JA3B has a capacitance of 390 pF and a voltage rating of 3150V (3.15kV).

  • Capacitance: 390 pF
  • Voltage Rating: 3150V (3.15kV)
  • Tolerance: +/-5%
  • Temperature Coefficient: SL
  • Application: general purpose
  • Packaging: bulk
  • Standard Package: 100
  • Height Seated (Max): 0.748" (19.00mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Lead Style: formed leads
  • Mounting Type: through-hole
  • Package/Case: radial, disc
  • Operating Temperature Range: -25°C to 125°C
  • Status: obsolete
  • ECCN: EAR99
