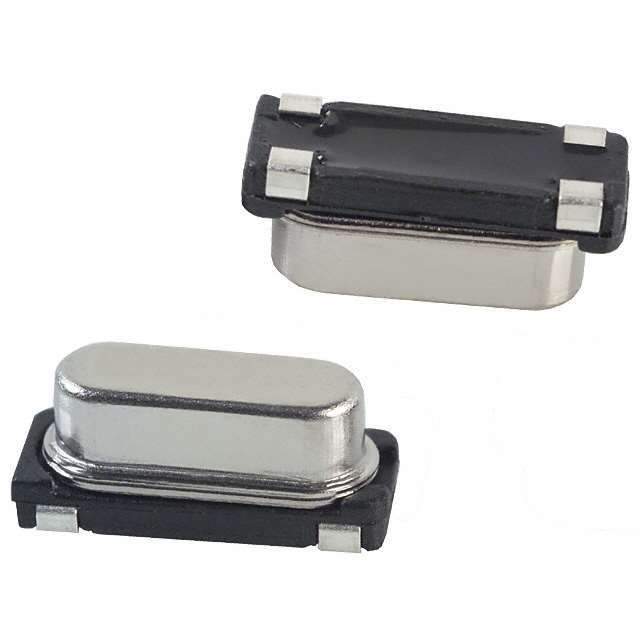

ECS-120-S-28AX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-120-S-28AX-TR

Part No ECS-120-S-28AX-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 12.0000MHZ SERIES SMD / Crystal 12MHz ±30ppm (Tol) ±50ppm (Stability) Series FUND 60Ohm 4-Pin SMD T/R
Datasheet
ECS-120-S-28AX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series CSM-4AX
Type MHz Crystal
Frequency 12MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance Series
ESR (Equivalent Series Resistance) 60 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 70°C
Mounting SMD
Package HC49/US
Dimension 0.492" L x 0.191" W (12.50mm x 4.85mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Win Source Part Number 770839-ECS-120-S-28AX-TR
Popularity Medium
Supply and Demand Status Limited
Introduction Date December 18, 2000
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ECS-120-S-28AX-TR CAD Model

Description

The ECS Inc. CSM-4AX is a MHz crystal.

  • Frequency: 12MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • Load Capacitance: Series
  • Mode: Fundamental
  • Package: HC49/US
  • Mounting: Surface mount
  • ESR: 60 Ohm
  • Temperature Range: -10°C to 70°C
  • ECCN: EAR99
  • Manufacturer: ECS Inc.
  • Estimated EOL Date: 2024
