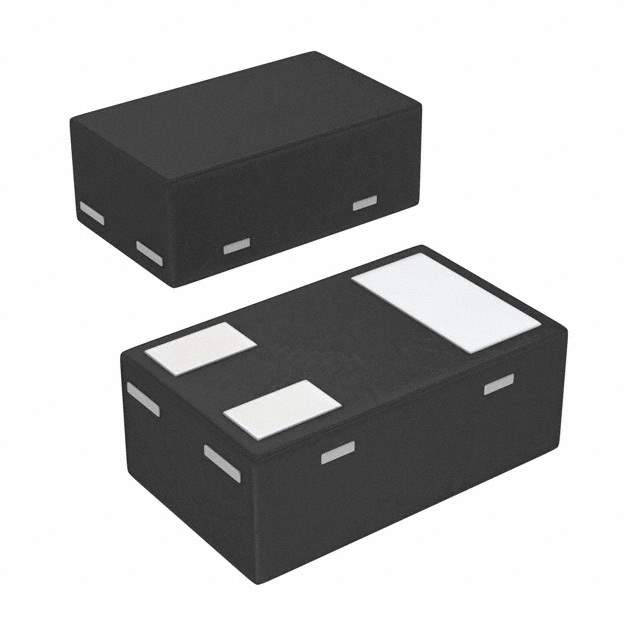

The 1SS361CT is a Schottky barrier diode array manufactured by Toshiba Semiconductor and Storage. It consists of two Schottky diodes connected in a common cathode configuration. This diode array is designed for high-speed switching and rectification applications, especially in portable devices and high-frequency circuits.

Applications:

• High-speed rectification
• Voltage clamping
• Reverse polarity protection
• Switching circuits
• Mixer and detector circuits

Features:

• Low forward voltage drop
• Fast switching speed
• Small package size
• High surge current capability
• Low junction capacitance

Benefits:

• Improved efficiency in high-frequency circuits
• Reduced power dissipation
• Compact design for space-constrained applications
• Enhanced protection against voltage transients
• Reliable performance in demanding environments

Technical Specifications:

• Configuration: Common Cathode
• Maximum Repetitive Peak Reverse Voltage (VRRM): 30V
• Maximum Average Forward Current (IF(AV)): 0.5A
• Peak Forward Surge Current (IFSM): 3A
• Forward Voltage (VF): 0.55V (typical) at IF = 0.1A
• Reverse Recovery Time (trr): Not applicable (Schottky diode)
• Junction Capacitance (CJ): 15 pF (typical)
• Operating Temperature Range: -40°C to +125°C
• Package: SOT-23

The 1SS361CT Schottky diode array is designed to provide efficient and fast switching in a compact form factor, making it ideal for use in portable electronics, power management circuits, and high-frequency applications. Its low forward voltage drop and fast switching speed contribute to enhanced circuit performance and energy efficiency.
