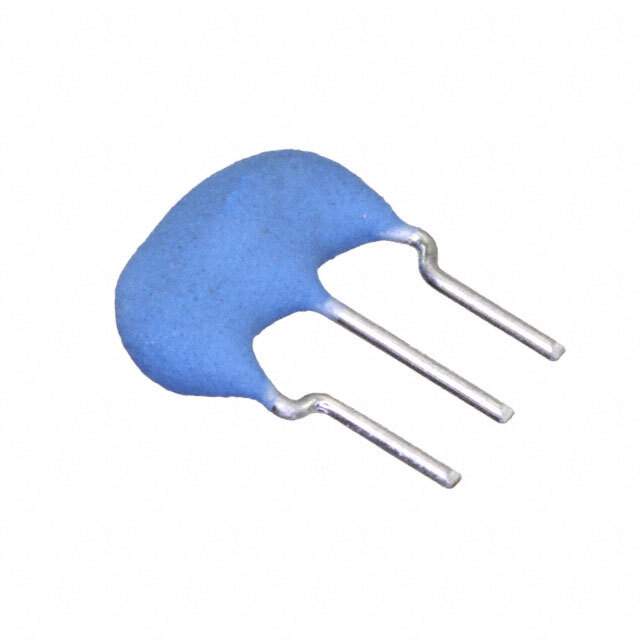

CSTLS10M0G53-B0 Real Image
Same model may have multiple batches, images only for reference.

CSTLS10M0G53-B0

Part No CSTLS10M0G53-B0
Manufacturer Murata Electronics North America
Catalog Resonators
Description CERAMIC RES 10.0000MHZ 15PF T/H / 10 MHz Ceramic Resonator Built in Capacitor 15 pF ±0.2% 25 Ohms -20°C ~ 80°C Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Resonators
Mfr Murata Electronics
Series CERALOCK® CSTLS
Package Bulk
Product Status Not For New Designs
Type Ceramic
Frequency 10 MHz
Frequency Stability ±0.2%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 15 pF
Impedance 25 Ohms
Temperature Range - Operating -20°C ~ 80°C
Mounting Type Through Hole
Package / Case Radial - 3 Lead, 2.50mm Pitch
Dimension 0.315" L x 0.118" W (8.00mm x 3.00mm)
Height 0.236" (6.00mm)
Base Product Number CSTLS
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Other Names CSTLS10M0G53B0,CSTS1000MG03,490-1213
Standard Package 500
Win Source Part Number 1120520-CSTLS10M0G53-B0
Ultra Librarian 3D Model Ultra Librarian CSTLS10M0G53-B0 CAD Model

Description

The Murata Electronics CERALOCK® CSTLS resonator is a high-performance ceramic component designed for use in various electronic applications.

  • Frequency: 10 MHz
  • Frequency Tolerance: ±0.5%
  • Built-in Capacitance: 15 pF
  • Impedance: 25 Ohms
  • Mounting Style: Through Hole
  • Package/Case: Radial-3 Lead, 2.50mm Pitch
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Operating Temperature: -20°C to 80°C
  • Frequency Stability: ±0.2%
  • Not For New Designs: Yes
