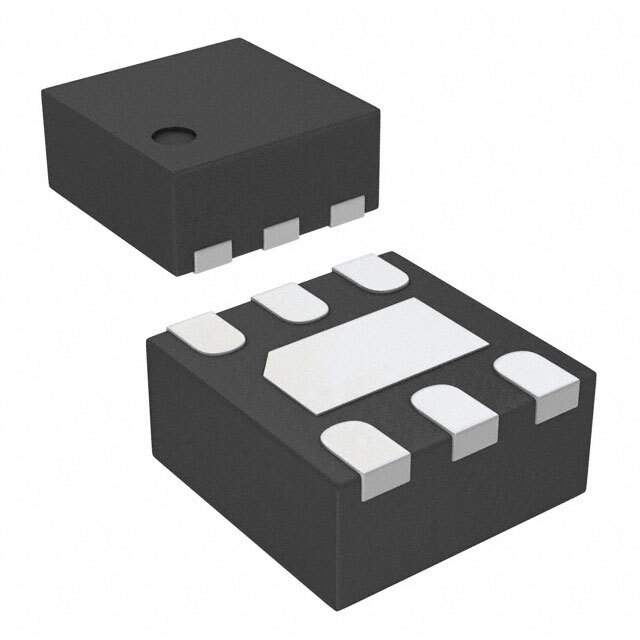

MPQ2013AGG-33-Z Real Image
Same model may have multiple batches, images only for reference.

MPQ2013AGG-33-Z

Part No MPQ2013AGG-33-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 3.3V 150MA 6QFN / Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 6-QFN (2x2)
Datasheet
MPQ2013AGG-33-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Monolithic Power Systems Inc.
Package Tape & Reel (TR)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 3.3V
Voltage Dropout (Max) 1.1V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 50 µA
PSRR 58dB ~ 41dB (100Hz ~ 1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 6-VDFN Exposed Pad
Supplier Device Package 6-QFN (2x2)
Base Product Number MPQ2013
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 5,000
Win Source Part Number 976767-MPQ2013AGG-33-Z
Ultra Librarian 3D Model Ultra Librarian MPQ2013AGG-33-Z CAD Model

Description

The MPQ2013AGG-33-Z is a voltage regulator from Monolithic Power Systems Inc. that is designed to provide a fixed 3.3V output voltage.

  • Type: linear voltage regulator
  • Maximum Input Voltage: 40V
  • Maximum Output Current: 150mA
  • Enable Control: Yes
  • Protection: over-current and over-temperature
  • Package: 6-VDFN exposed pad
  • Applications: consumer electronics, industrial equipment, and automotive systems
