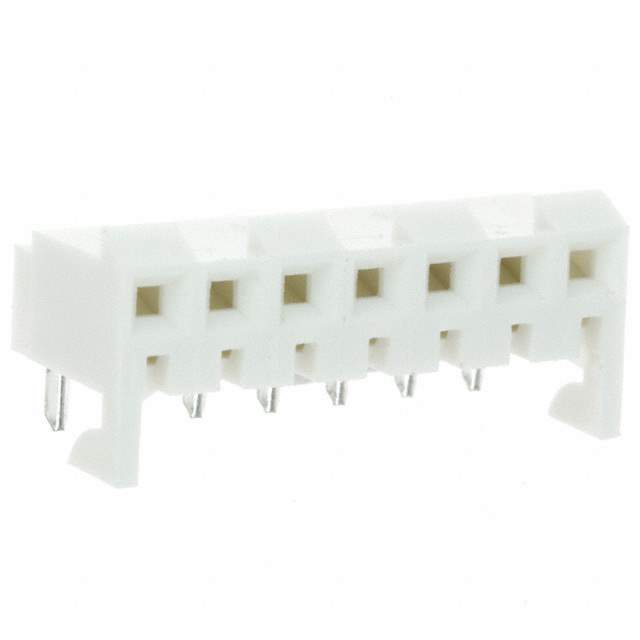

9481074 Real Image
Same model may have multiple batches, images only for reference.

9481074

Part No 9481074
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Molex
Series KK396, 41815
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 7
Number of Positions Loaded All
Pitch - Mating 0.156" (3.96mm)
Number of Rows 1
Mounting Type Board Edge, Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Insulation Color Natural
Insulation Height 0.308" (7.82mm)
Contact Length - Post 0.145" (3.68mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Hooks
Current Rating (Amps) 5A
Voltage Rating 600V
Applications Automotive, General Purpose, Medical, Telecommunications
Insulation Material Polyester
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 60.0µin (1.52µm)
Base Product Number 000948
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1315965-9481074
Ultra Librarian 3D Model Ultra Librarian 9481074 CAD Model

Description

The Molex KK396, 41815 series connector is a female socket receptacle with a locking ramp fastening type.

  • Product Name: KK396, 41815 series connector
  • Manufacturer: Molex
  • Type: Female socket receptacle
  • Fastening Type: Locking ramp
  • Pitch: 0.156 inches (3.96mm)
  • Voltage Rating: 600V
  • Contact Material: Phosphor bronze
  • Insulation Color: Natural
  • Application: Board to board or cable style
  • Industries: Automotive, medical, and telecommunications
  • Temperature Range: -40°C to 105°C
  • Current Rating: 5A
