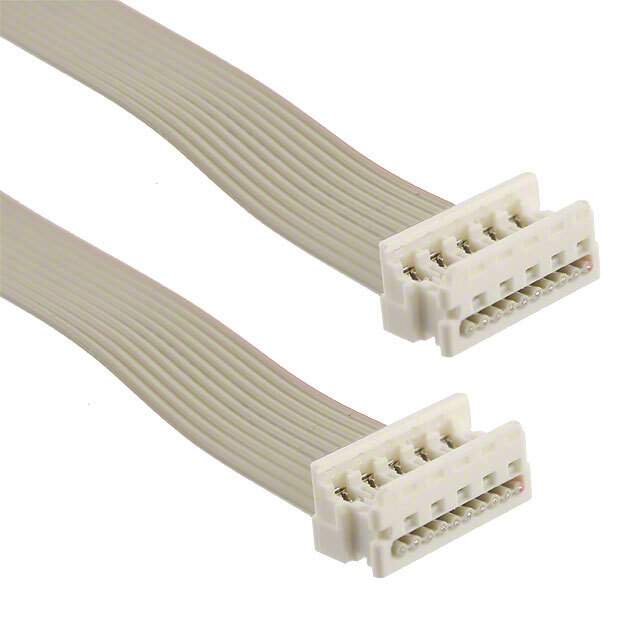

92315-1015 Real Image
Same model may have multiple batches, images only for reference.

92315-1015

Part No 92315-1015
Manufacturer Molex, LLC
Catalog Cables, Wires Fiber Optic Cables
Description Cable Assembly Flat Ribbon 0.1m 28AWG Rectangular RCP 51 POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Cable Length 150 mm
Cable Pitch 1.27 mm
Color Grey, Natural
Connector Pitch 1.27 mm
Connector Type Connector, IDC
Connector Type A IDT, Socket
Connector Type B IDT, Socket
Contact Plating Tin
Country of Origin PL
Current Rating 1.2 A
Flammability Rating UL94 V-0
Gender Female to Female
Insulation Material PVC
Lead Length 150 mm
Length 150 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -20 °C
Number of Circuits 10
Number of Conductors 10
Number of Pins 10
Number of Rows 2
Packaging Bulk
Plating Tin
Radiation Hardening No
RoHS Compliant
Schedule B 8544420000
Termination IDT
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Wire/Cable Gauge 28 AWG
Wire/Cable Type Flat Flex
Working Voltage 250 V
Win Source Part Number 967076-92315-1015
Categories Cables, Wires Fiber Optic Cables
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 92315-1015 CAD Model

Description

The Molex 92315-1015 is a 10-pin female-to-female flat flex cable connector that is used to connect two flat cables together. It has a pitch of 1.27mm and a working voltage of 250V.

  • Pins: 10
  • Gender: Female-to-Female
  • Type: Flat Flex Cable Connector
  • Pitch: 1.27mm
  • Working Voltage: 250V
  • Package: Bulk
  • Length: 150mm
  • Flammability Rating: UL94 V-0
  • RoHS Compliant: Yes
