Same model may have multiple batches, images only for reference.

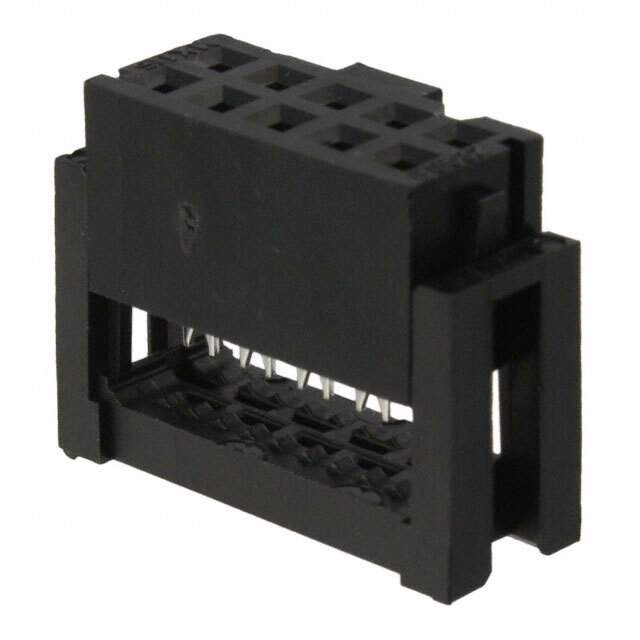

90635-1102 Real Image
Same model may have multiple batches, images only for reference.

90635-1102

Part No 90635-1102
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 1.27mm Pitch QF-50 Single Beam, Vertical MIL/DIN Version, 0.76µm Gold (Au), 10 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type IDC, IDT
Contact Current Rating 2.5 A
Contact Material Copper
Contact Plating Gold
Contact Resistance 20 mΩ
Country of Origin KR
Current Rating 1 A
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Pitch 1.27 mm
Max Operating Temperature 85 °C
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -25 °C
Mount Cable
Number of Circuits 10
Number of Contacts 10
Number of Pins 10
Number of Poles 10
Number of Positions 10
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination IDT
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Working Voltage 250 V
Win Source Part Number 1226039-90635-1102
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90635-1102 CAD Model

Description

The Molex 1226039-90635-1102 is a 2-row, 10-position IDC, IDT connector with a pitch of 2.54 mm.

  • Rows: 2
  • Positions: 10
  • Type: IDC, IDT
  • Pitch: 2.54 mm
  • Working Voltage: 250 V
  • Current Rating: 1 A
  • Housing Material: Polyester
  • Contact Material: Copper
  • Contact Plating: Gold
  • Housing Color: Black
  • Contact Resistance: 20 mΩ
  • RoHS: Compliant
  • Mounting Style: Cable
  • Suitable for: Custom parts
