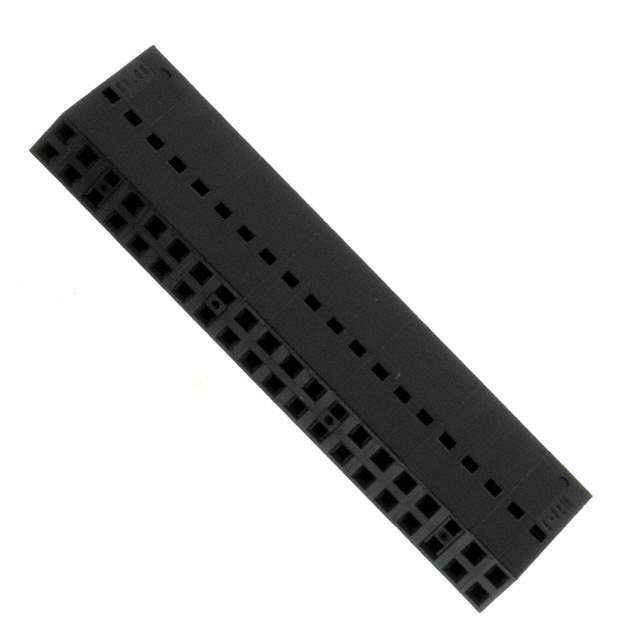

90143-0040 Real Image
Same model may have multiple batches, images only for reference.

90143-0040

Part No 90143-0040
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 2.54mm Pitch C-Grid III Modular Crimp Housing, Dual Row, 40 Circuits, Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle, Socket
Contact Gender Female
Country of Origin SG
Current Rating 3 A
Gender Receptacle
Glow Wire Compliant Non-compliant
Housing Color Black
Housing Material PPO
Lead Free Lead Free
Max Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Cable, Free Hanging
Number of Contacts 40
Number of Positions 40
Number of Rows 2
Orientation Straight
Packaging Bulk
Pitch 2.54 mm
REACH SVHC Unknown
RoHS Compliant
Row Spacing 2.54 mm
Termination Crimp
Win Source Part Number 1185686-90143-0040
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 90143-0040 CAD Model

Description

The Molex 1185686-90143-0040 is a 40-position receptacle socket connector that is designed for use in cable, free hanging applications.

  • Positions: 40
  • Application: Cable, free hanging
  • Pitch: 2.54 mm
  • Row Spacing: 2.54 mm
  • Current Rating: 3 A
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Application: Custom parts
  • Popularity: Medium
  • Supply and Demand Status: Limited
