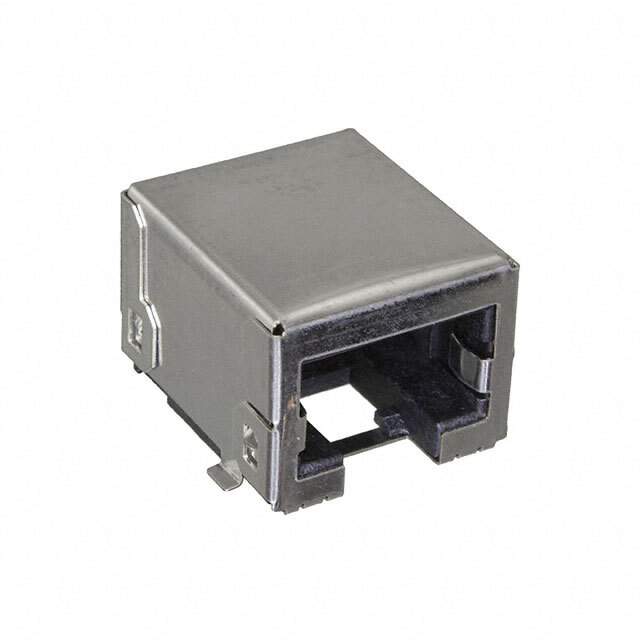

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr Molex
Series 85543
Package Tape & Reel
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Surface Mount
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded
Ratings Cat5e
Features Solder Retention
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness Flash
Housing Material Liquid Crystal Polymer (LCP) , Glass Filled
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 085543
Standard Package 132
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349705-0855437002
Ultra Librarian 3D Model Ultra Librarian 0855437002 CAD Model

Description

The 85543 modular connector jack is a shielded connector that is designed for use in various electronic applications.

  • Manufacturer: Molex
  • Package: Tape and reel
  • Standard Package: 132
  • Series: Molex 85543
  • Category: Cat5e
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • Base Product Number: 085543
