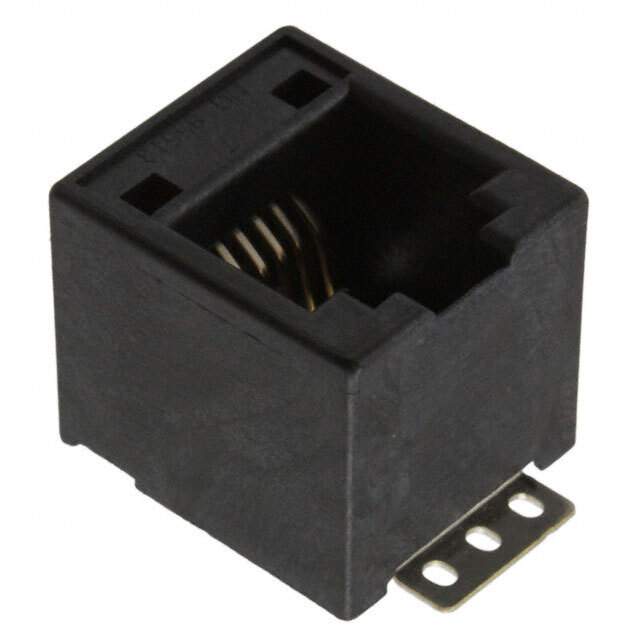

855135014 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks
Mfr Molex
Series 85513
Package Tape & Reel
Connector Type Jack
Number of Positions/Contacts 6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Ports 1
Number of Rows 1
Mounting SMD (SMT)
Orientation Vertical
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Solder Retention
LED Color Does Not Contain LED
Tab Direction User Selectable
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 085513
Other Names 85513-5014,WM3554TR,085513-5014,Q8069704,WM3554CT,WM3554DKR,855135014
Standard Package 236
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294060-855135014
Ultra Librarian 3D Model Ultra Librarian 855135014 CAD Model

Description

The Molex Jack is a modular connector that has a shielding of unshielded and a ratings of Cat3.

  • Shielding: Unshielded
  • Ratings: Cat3
  • Number of Positions/Contacts: 6p6c (RJ11, RJ12, RJ14, RJ25)
  • Mounting Type: Surface Mount Device (SMD) (SMT)
  • Tab Direction: User Selectable
  • Number of Ports: 1
  • Contact Finish: Gold with a flash contact finish thickness
  • Contact Material: Copper Alloy
  • Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • Application: Jacks
