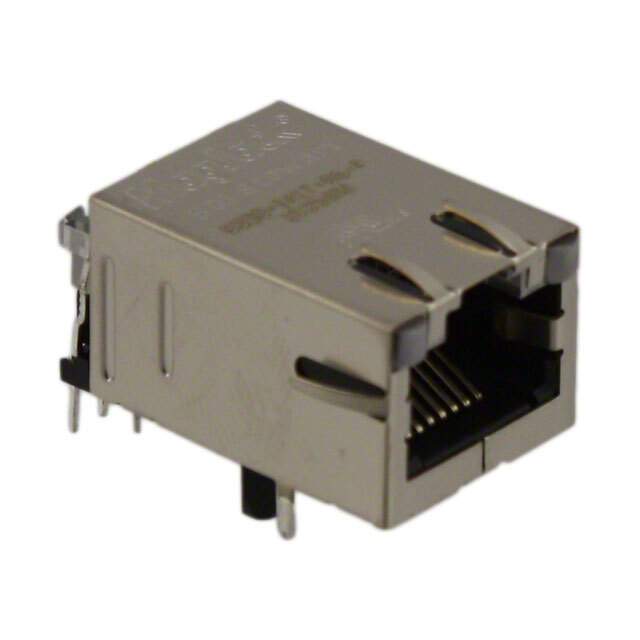

08B0-1X1T-06-F Real Image
Same model may have multiple batches, images only for reference.

08B0-1X1T-06-F

Part No 08B0-1X1T-06-F
Manufacturer Bel Fuse Inc.
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet
08B0-1X1T-06-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Bel Fuse Inc.
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.531" (13.49mm)
LED Color Green, Orange - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 507-1445,08B01X1T06-F,08B01X1T06F,Q7760130
Standard Package 60
Win Source Part Number 1333961-08B0-1X1T-06-F
Ultra Librarian 3D Model Ultra Librarian 08B0-1X1T-06-F CAD Model

Description

The Modular Connector Jack with Magnetics is a highly efficient connector that features board guide and shielded EMI finger.

  • Orientation: 90° angle (right)
  • Port: 1 port
  • Applications: 10/100 Base-T and AutoMDIX
  • Termination: Soldered
  • Contact Finish: Gold contact finish with a thickness of 15.0µin (0.38µm)
  • Contact Material: Copper alloy
  • Cores per Jack: 4 cores per jack
  • LED Color: Green-orange-yellow
  • Package: Tray package
  • Height Above Board: 0.531" (13.49mm)
  • Mounting Type: Through-hole
  • Tab Direction: Up
  • Package: 60
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Manufacturer: Bel Fuse Inc.
