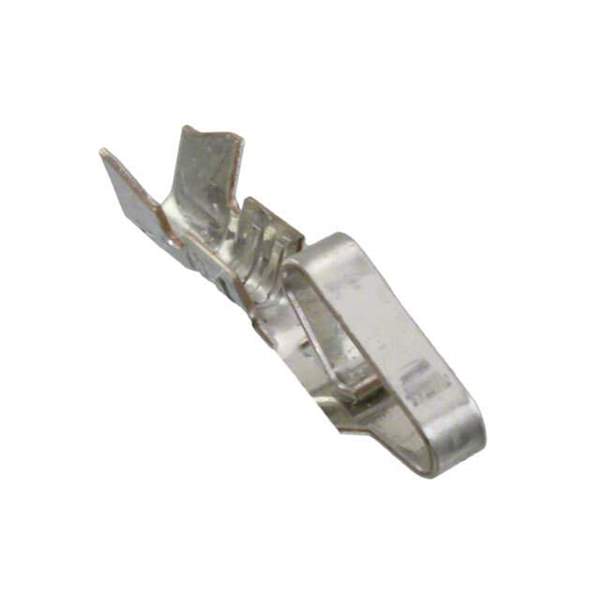

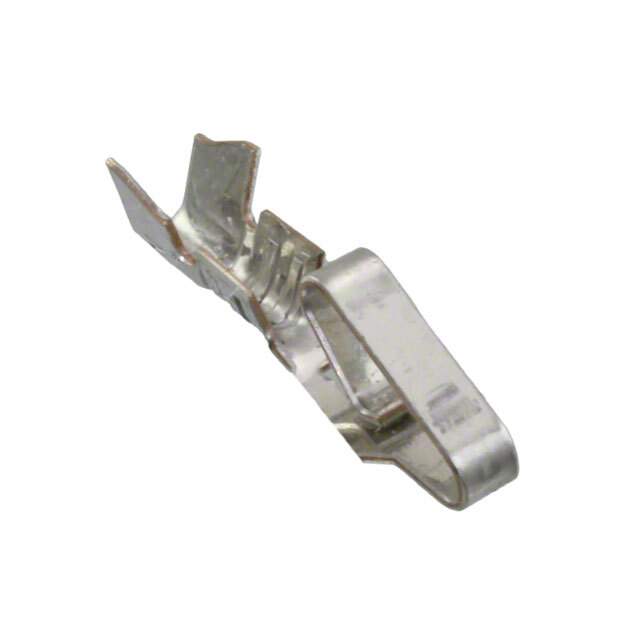

0008520071 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Manufacturer Molex
Packaging Reel - TR
Pin or Socket Non-Gendered
Contact Termination Crimp
Wire Gauge 18-24 AWG
Contact Finish Tin
Contact Finish Thickness 100.0µin (2.54µm)
Base Product Number 000852
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 08520071,WM2302CT-NDR,WM2302TR-NDR,WM2302TR,8520071,2478-3-(P909),08520071-C,0008-52-0071-C,0008-52-0071,WM2302CT,08-52-0071-C,08-52-0071,0008520071-C
Standard Package 7,000
Win Source Part Number 1333817-0008520071
Ultra Librarian 3D Model Ultra Librarian 0008520071 CAD Model

Description

The Molex rectangular connector contacts have a contact finish of tin and a contact finish thickness of 100.0µin (2.54µm).

  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Termination: Crimp
  • Wire Gauge: 18-24 AWG
  • Gender: Non-Gendered
  • Pin or Socket: Pin or Socket
  • Standard Package: 7,000
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
