Same model may have multiple batches, images only for reference.

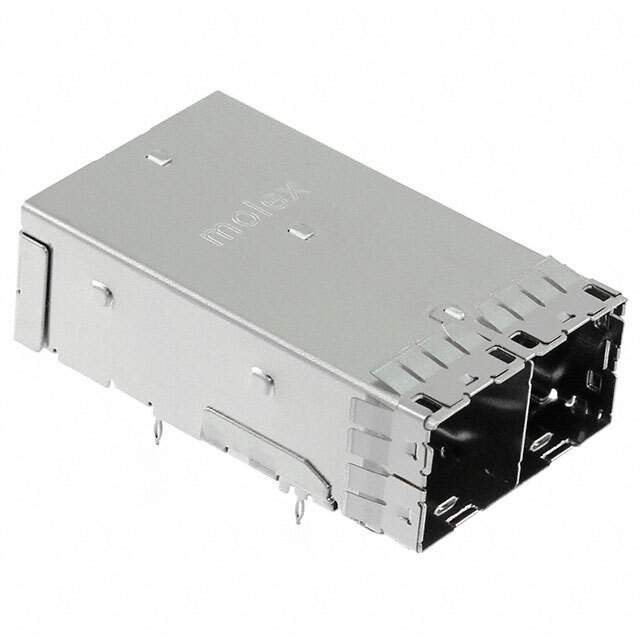

76866-1015 Real Image
Same model may have multiple batches, images only for reference.

76866-1015

Part No 76866-1015
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Conn I-Pass+ F 72 POS Press Fit RA Thru-Hole 72 Terminal 2 Port iPass+ Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Country of Origin MX
Gender Female
Halogen Free Low Halogen
Maximum Operating Temperature 80 °C
Max Voltage Rating (DC) 3.03 kV
Min Operating Temperature -40 °C
Mount Surface Mount, Through Hole
Number of Circuits 72
Number of Contacts 72
Orientation Right Angle
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Termination Press-Fit
Win Source Part Number 1040783-76866-1015
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 76866-1015 CAD Model

Description

The Molex Female Press-Fit Connector is a high-quality connector with 72 contacts and a right-angle orientation.

  • Contact Plating: Gold
  • Plating: Tin
  • RoHS Compliant: Yes
  • Halogen Free Level: Low
  • Maximum Operating Temperature: 80 °C
  • Minimum Operating Temperature: -40 °C
  • Supply and Demand Status: Shortage
  • Mounting: Surface and Through-Hole
